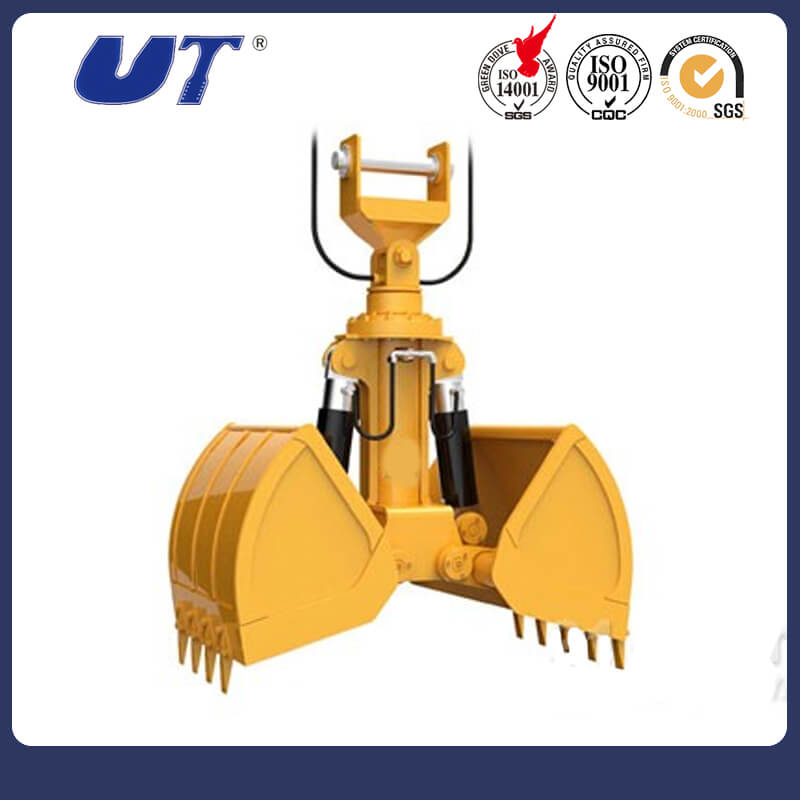

HYDRAULIC GRAB BUCKET

Features:

■Special steel material with high ductility and high resistance

■ Imported balance valve motor with buffering and braking kinetic energy.

■ The cylinder is equipped with non-return valve, more safety for grabbing

■  High strength rotating support device, the operator can manipulate the swinging speed and its rotating direction for 360 degree clockwise and anticlockwise.

■ With soft tube in the high pressure cylinder, the soft tube is under protection

■ The product can also be designed with no swinging rotation in accordance with customers’ different requirements.

■Widely used in sand plant, stone-crushing plant, dock, industries like renewable resources and coal recycle, auto decomposition and waste transfer.







Unit

UT-HGB400

UT-HGB600

UT-HGB800

UT-HGB1000

Weight

kg

600

900

1110

1497

Max jaw opening

Mm

1500

1768

2000

2165

Closed Width

Mm

1350

1486

1673

1902

Set up pressure

Bar

260

260

260

260

Operating Flux

L/Min

20-70

60-120

60-120

60-120

Cylinder volume

M³

0.4

0.6

0.8

1

Suitable Excavator

Ton

5-11

12-18

17-15

25-35






parámetro

Product content to be updated ......
