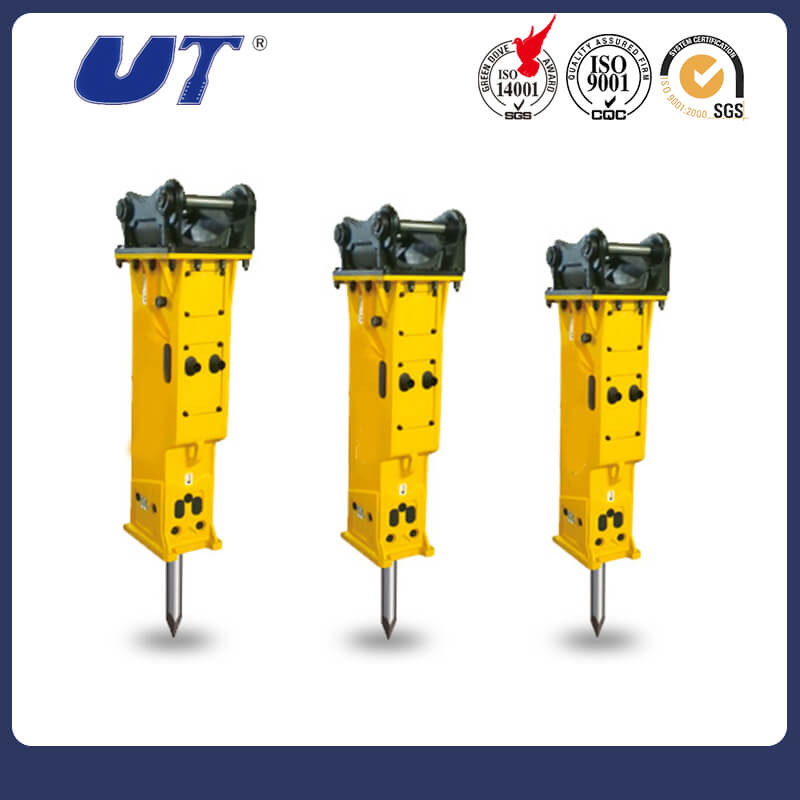

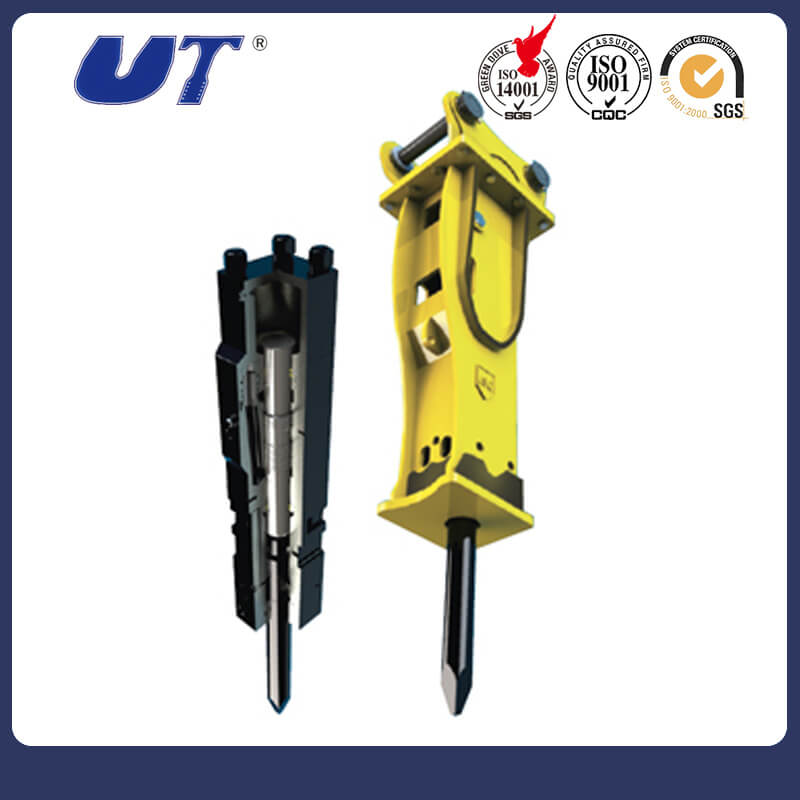

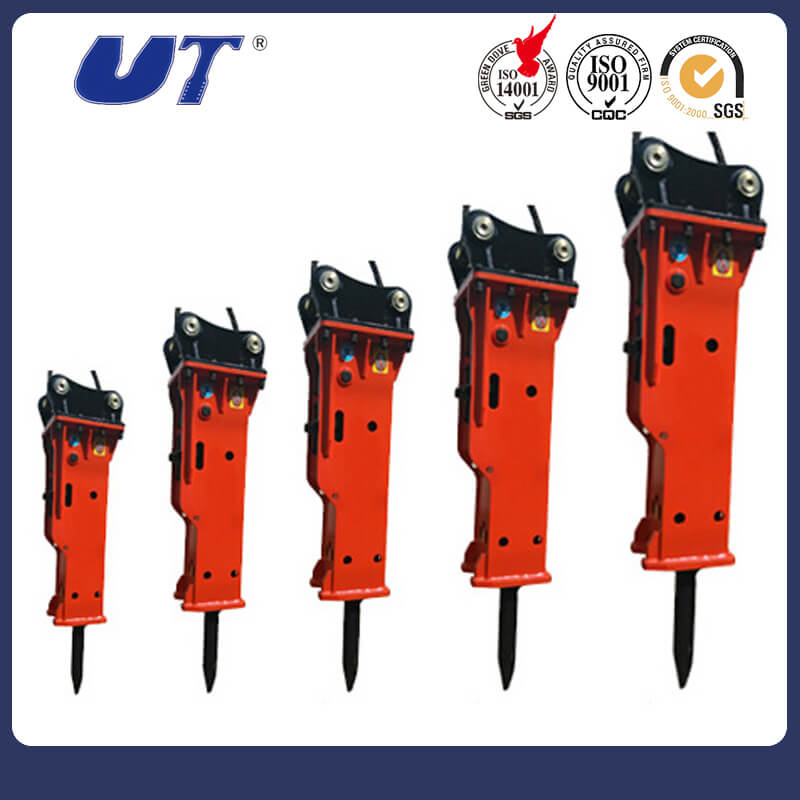

Box Type Hydraulic Breaker
Boxed Type - Light Series 45-100
UTHB-B-45
|
Cylinder Weight |
62 |
kg |
|
Total Weight |
128 |
kg |
|
Overall Length |
1279 |
mm |
|
Required Oil Flow |
20-40 |
L/min |
|
Working Pressure |
90-120 |
Kg/cm2 |
|
Impact Rate |
700-1200 |
b.p.m |
|
Chisel Diameter |
D45 |
mm |
|
Application Excavator |
0.8-1.5 |
ton |
UTHB-B-53
|
Cylinder Weight |
80 |
kg |
|
Total Weight |
170 |
kg |
|
Overall Length |
1446 |
mm |
|
Required Oil Flow |
20-50 |
L/min |
|
Working Pressure |
90-120 |
Kg/cm2 |
|
Impact Rate |
600-1100 |
b.p.m |
|
Chisel Diameter |
D53 |
mm |
|
Application Excavator |
2.5-4.5 |
ton |
UTHB-B-70
|
Cylinder Weight |
146 |
kg |
|
Total Weight |
343 |
kg |
|
Overall Length |
1652 |
mm |
|
Required Oil Flow |
40-70 |
L/min |
|
Working Pressure |
110-140 |
Kg/cm2 |
|
Impact Rate |
500-900 |
b.p.m |
|
Chisel Diameter |
D70 |
mm |
|
Application Excavator |
4-7 |
ton |
UTHB-B-75
|
Cylinder Weight |
207 |
kg |
|
Total Weight |
477 |
kg |
|
Overall Length |
1862 |
mm |
|
Required Oil Flow |
50-90 |
L/min |
|
Working Pressure |
120-150 |
Kg/cm2 |
|
Impact Rate |
400-800 |
b.p.m |
|
Chisel Diameter |
D75 |
mm |
|
Application Excavator |
6-9 |
ton |
UTHB-B-85
|
Cylinder Weight |
263 |
kg |
|
Total Weight |
658 |
kg |
|
Overall Length |
2140 |
mm |
|
Required Oil Flow |
60-100 |
L/min |
|
Working Pressure |
130-160 |
Kg/cm2 |
|
Impact Rate |
400-800 |
b.p.m |
|
Chisel Diameter |
D85 |
mm |
|
Application Excavator |
7-14 |
ton |
UTHB-B-100
|
Cylinder Weight |
444 |
kg |
|
Total Weight |
935 |
kg |
|
Overall Length |
2310 |
mm |
|
Required Oil Flow |
80-110 |
L/min |
|
Working Pressure |
150-170 |
Kg/cm2 |
|
Impact Rate |
350-700 |
b.p.m |
|
Chisel Diameter |
D100 |
mm |
|
Application Excavator |
11-16 |
ton |
Box Type-Medium Series 125-155
UTHB-B-125
|
Cylinder Weight |
562 |
kg |
|
Total Weight |
1422 |
kg |
|
Overall Length |
2609 |
mm |
|
Required Oil Flow |
90-120 |
L/min |
|
Working Pressure |
150-170 |
Kg/cm2 |
|
Impact Rate |
350-650 |
b.p.m |
|
Chisel Diameter |
D125 |
mm |
|
Application Excavator |
15-18 |
ton |
UTHB-B-135
|
Cylinder Weight |
713 |
kg |
|
Total Weight |
1669 |
kg |
|
Overall Length |
2706 |
mm |
|
Required Oil Flow |
120-180 |
L/min |
|
Working Pressure |
160-180 |
Kg/cm2 |
|
Impact Rate |
350-500 |
b.p.m |
|
Chisel Diameter |
D135 |
mm |
|
Application Excavator |
18-21 |
ton |
UTHB-B-140
|
Cylinder Weight |
793 |
kg |
|
Total Weight |
1849 |
kg |
|
Overall Length |
2786 |
mm |
|
Required Oil Flow |
120-180 |
L/min |
|
Working Pressure |
160-180 |
Kg/cm2 |
|
Impact Rate |
350-500 |
b.p.m |
|
Chisel Diameter |
D140 |
mm |
|
Application Excavator |
18-26 |
ton |
UTHB-B-150
|
Cylinder Weight |
954 |
kg |
|
Total Weight |
2313 |
kg |
|
Overall Length |
1765 |
mm |
|
Required Oil Flow |
150-210 |
L/min |
|
Working Pressure |
160-180 |
Kg/cm2 |
|
Impact Rate |
300-450 |
b.p.m |
|
Chisel Diameter |
D150 |
mm |
|
Application Excavator |
25-30 |
ton |
UTHB-B-155
|
Cylinder Weight |
1102 |
kg |
|
Total Weight |
2643 |
kg |
|
Overall Length |
3161 |
mm |
|
Required Oil Flow |
180-240 |
L/min |
|
Working Pressure |
160-180 |
Kg/cm2 |
|
Impact Rate |
300-450 |
b.p.m |
|
Chisel Diameter |
D155 |
mm |
|
Application Excavator |
28-35 |
ton |
Box Type - Heavy Series 165-175
UTHB-B-165
|
Cylinder Weight |
1238 |
kg |
|
Total Weight |
2978 |
kg |
|
Overall Length |
3419 |
mm |
|
Required Oil Flow |
200-260 |
L/min |
|
Working Pressure |
160-180 |
Kg/cm2 |
|
Impact Rate |
250-460 |
b.p.m |
|
Chisel Diameter |
D165 |
mm |
|
Application Excavator |
30-45 |
ton |
UTHB-B-175
|
Cylinder Weight |
1694 |
kg |
|
Total Weight |
3593 |
kg |
|
Overall Length |
3668 |
mm |
|
Required Oil Flow |
230-270 |
L/min |
|
Working Pressure |
160-180 |
Kg/cm2 |
|
Impact Rate |
150-300 |
b.p.m |
|
Chisel Diameter |
D175 |
mm |
|
Application Excavator |
40-55 |
ton |
