Feature
Features

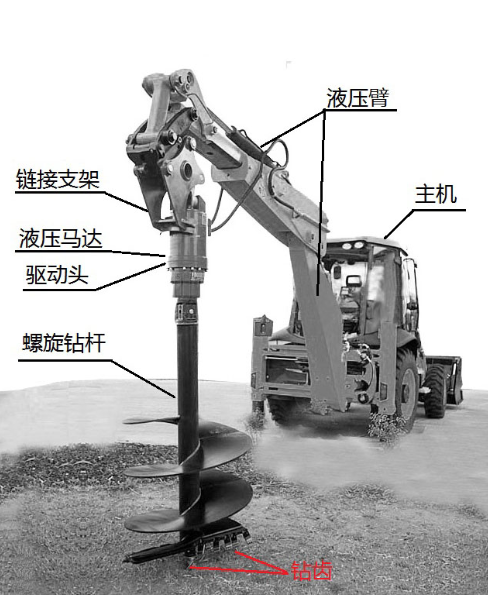

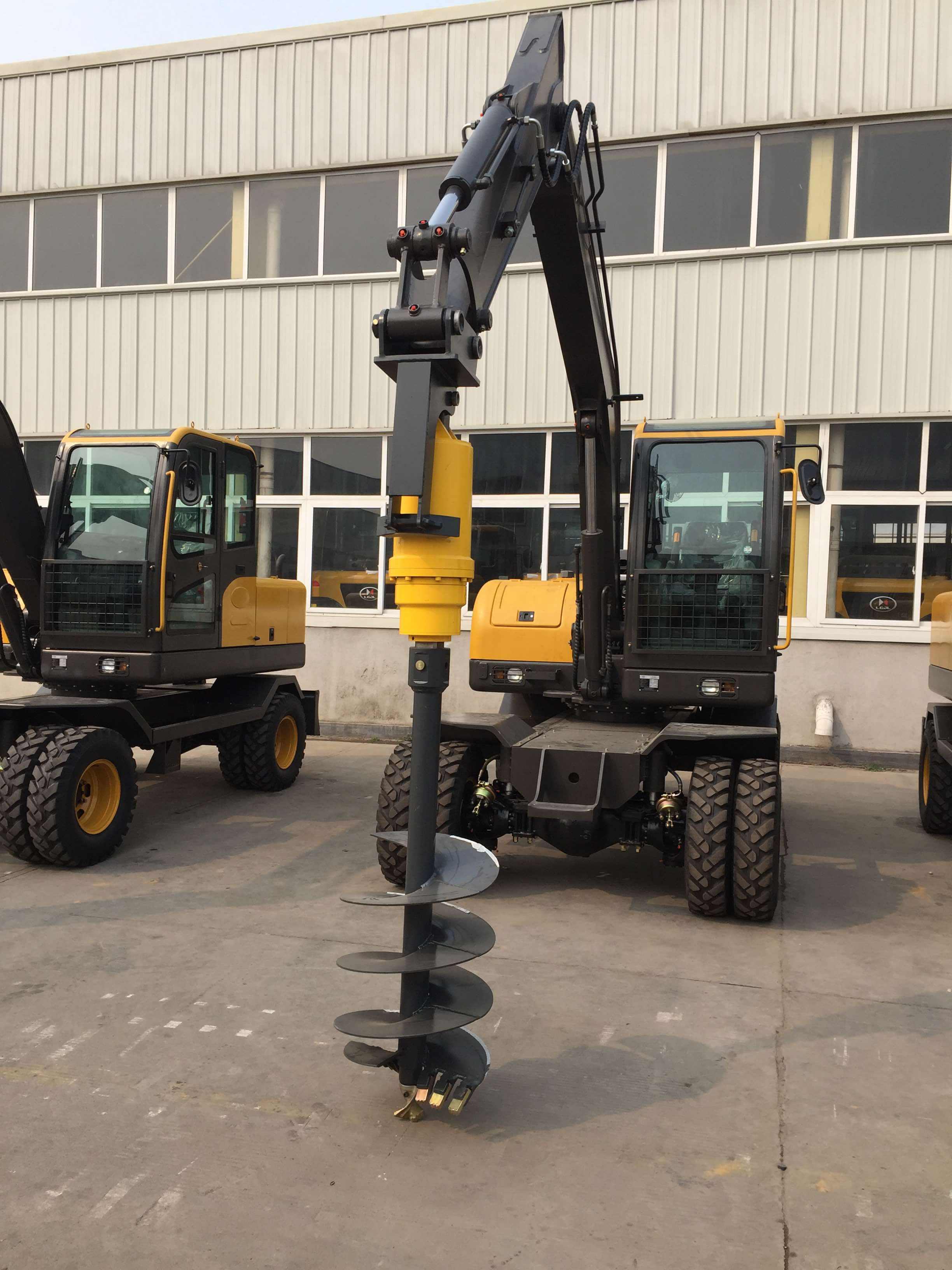

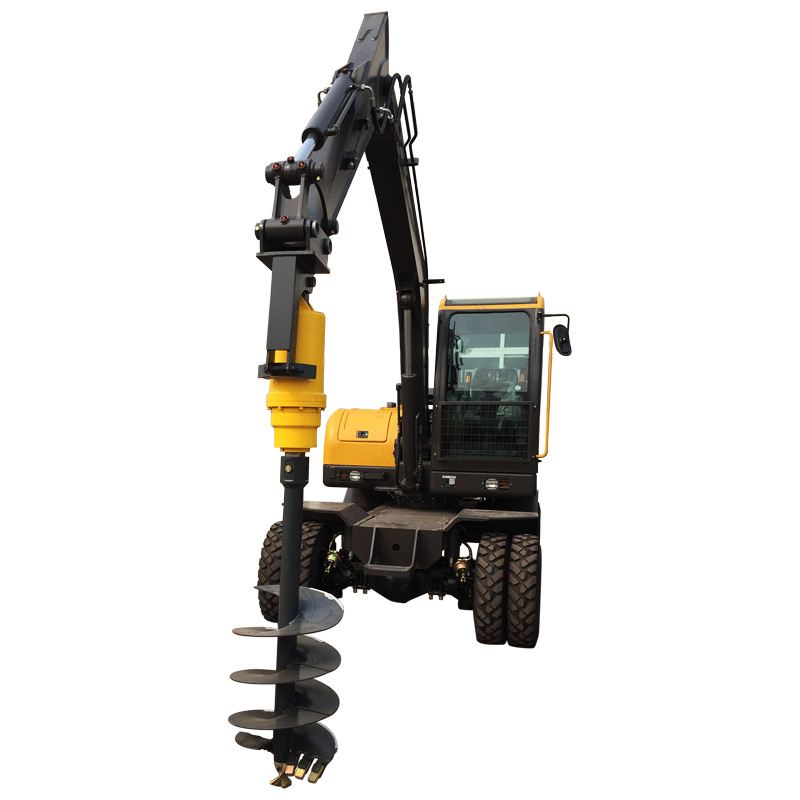

Spiral drill is a new type of basic construction equipment, which can be used in the construction of railway, highway, bridge, power plant and other basic facilities. It can basically meet the use of bridge construction, high-rise building and other basic projects.
Parameter
Auger Drill
Item
UT2000
UT4000
UT7000
UT8000
UT12000
UT15000
UT20000
UT25000
Suitable Excavator (T)
1.5-3
2.5-4.5
4.5-6
5-8
13-17
15-17
15-20
17-30
Torque（MAX) (Nm)
2510
3670
7300
7661
12300
15160
19200
24920
Pressure (Bar)
60-238
80-238
80-238
80-238
80-238
80-238
80-238
80-238
Flow (Lpm)
20-70
30-75
50-115
50-115
70-150
80-170
80-170
80-230
Output Pin Dia (mm)
65 round
65 round
75 square
75 square
75 square
75 square
75 square
75 square

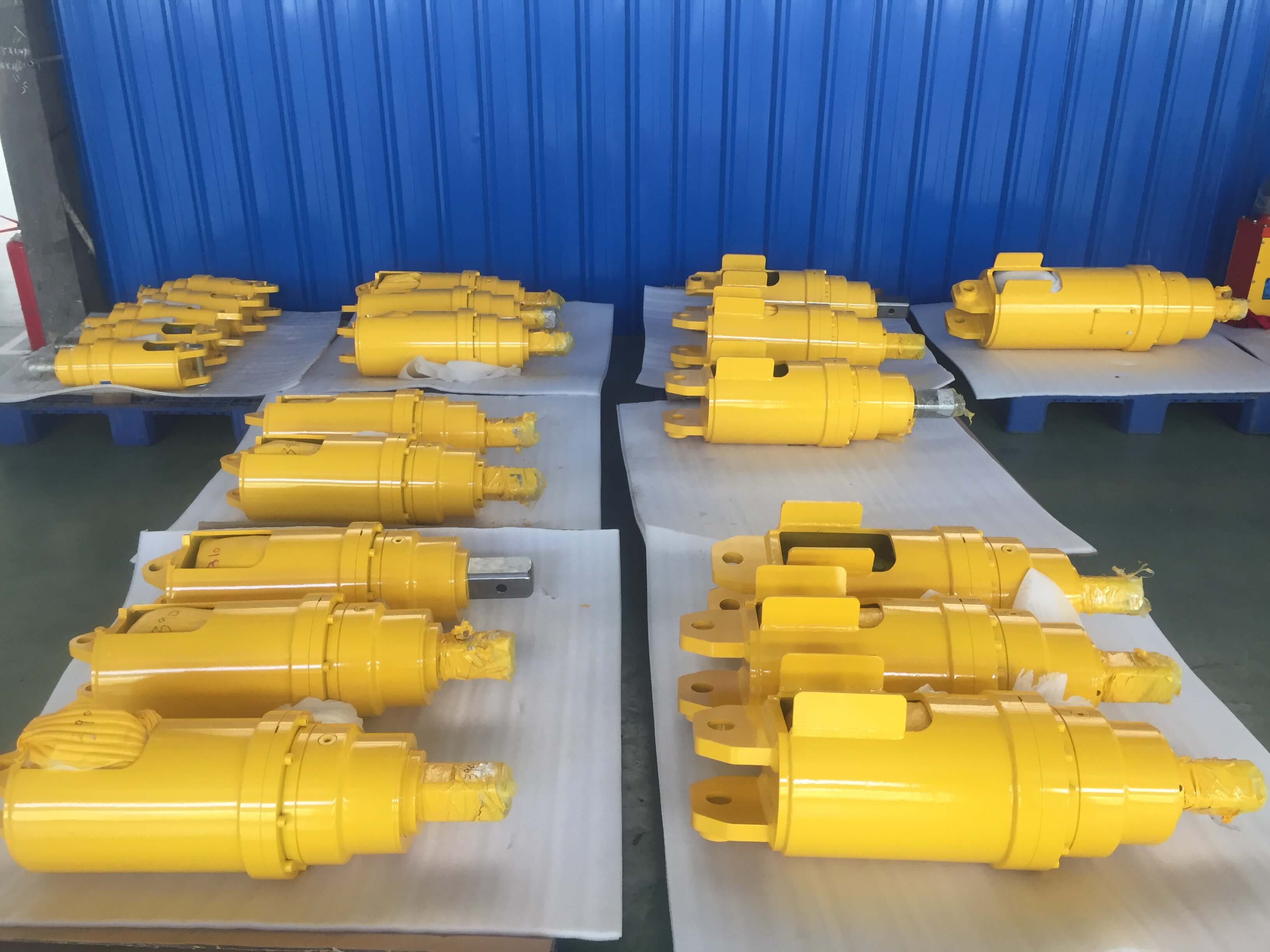

Power Head Dia(mm)
200
200
270
270
290
290
290
292
Power Head Weight (kg)
55
60
151
152
155
171
192
271

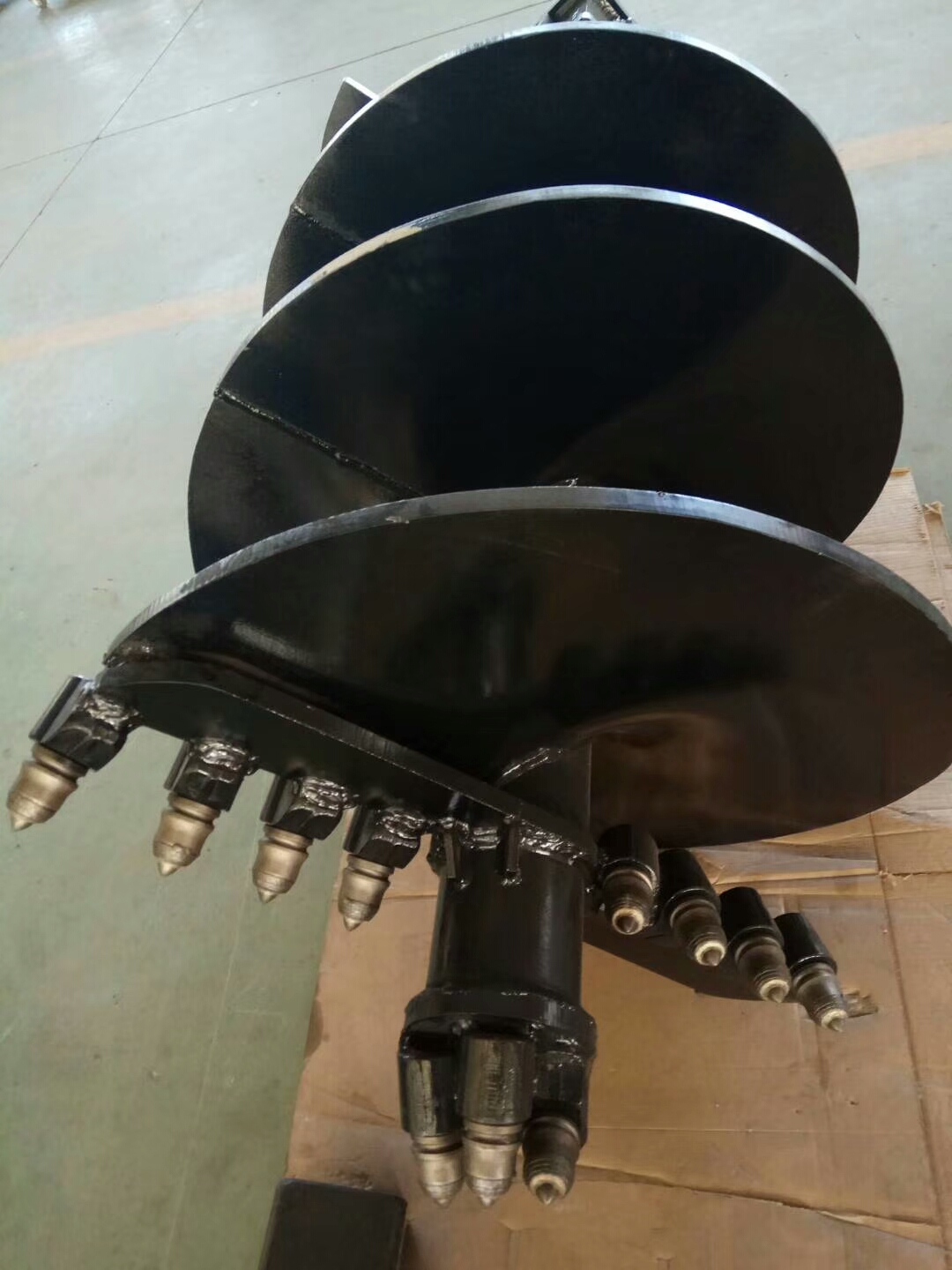

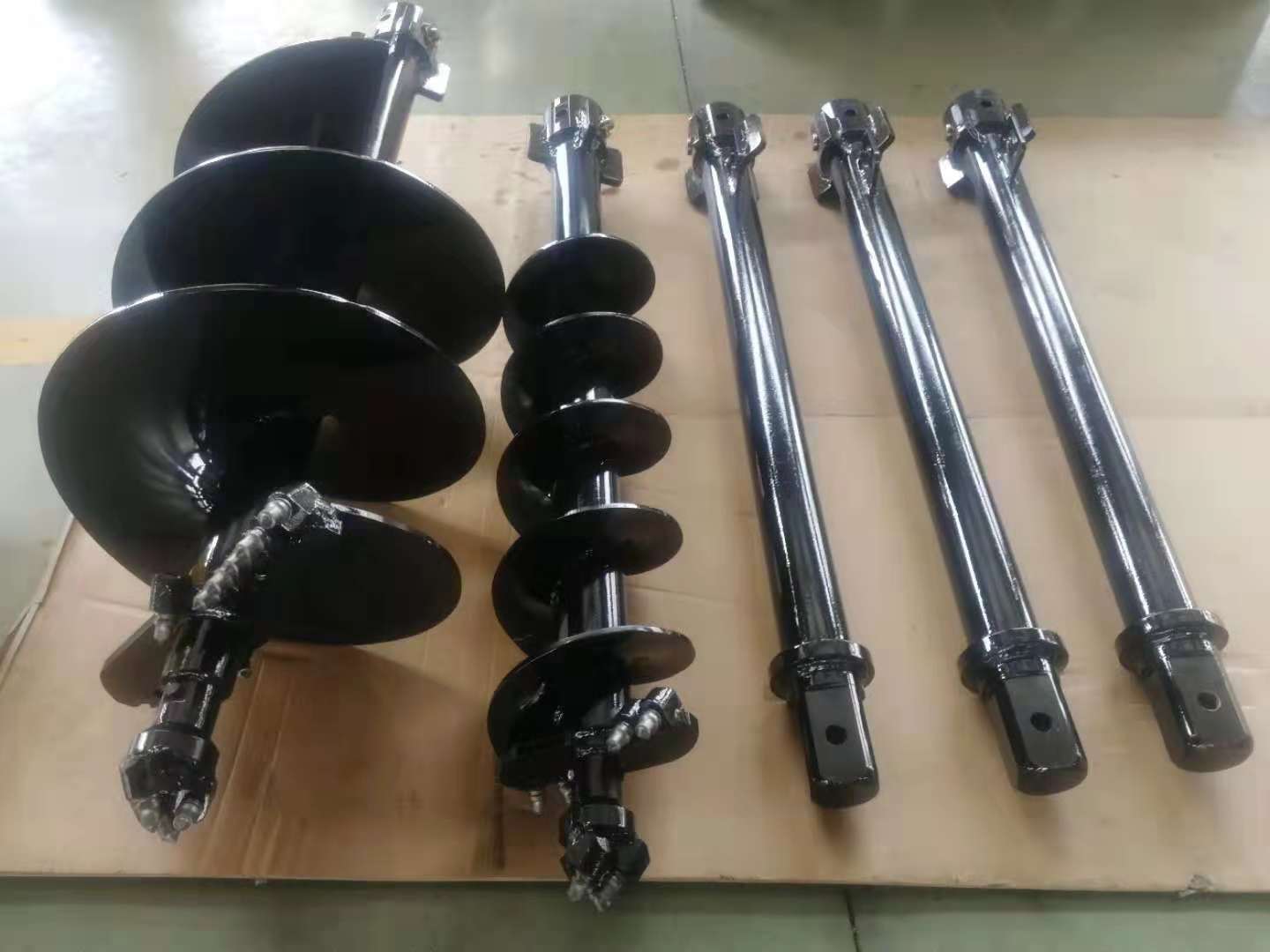

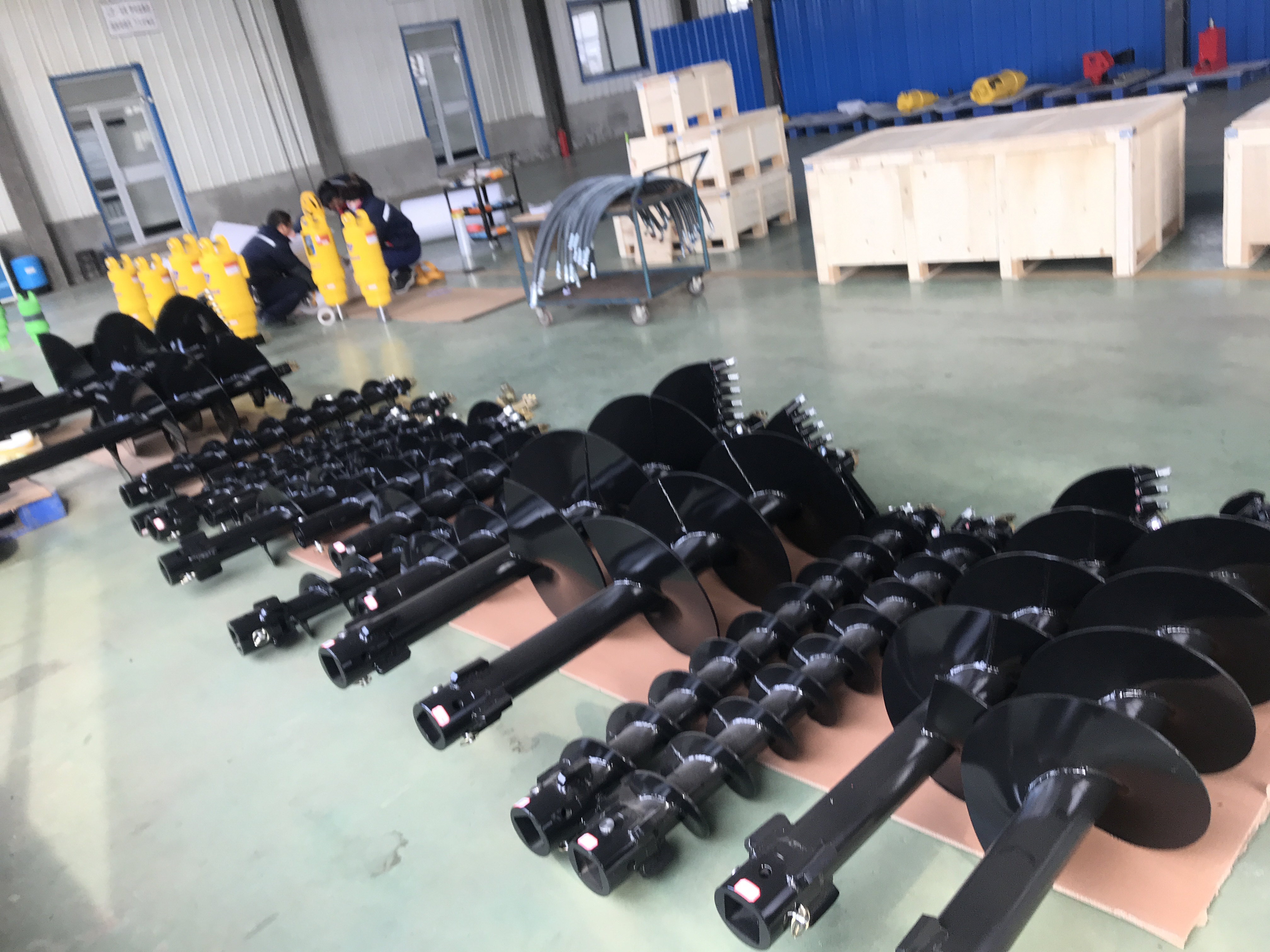

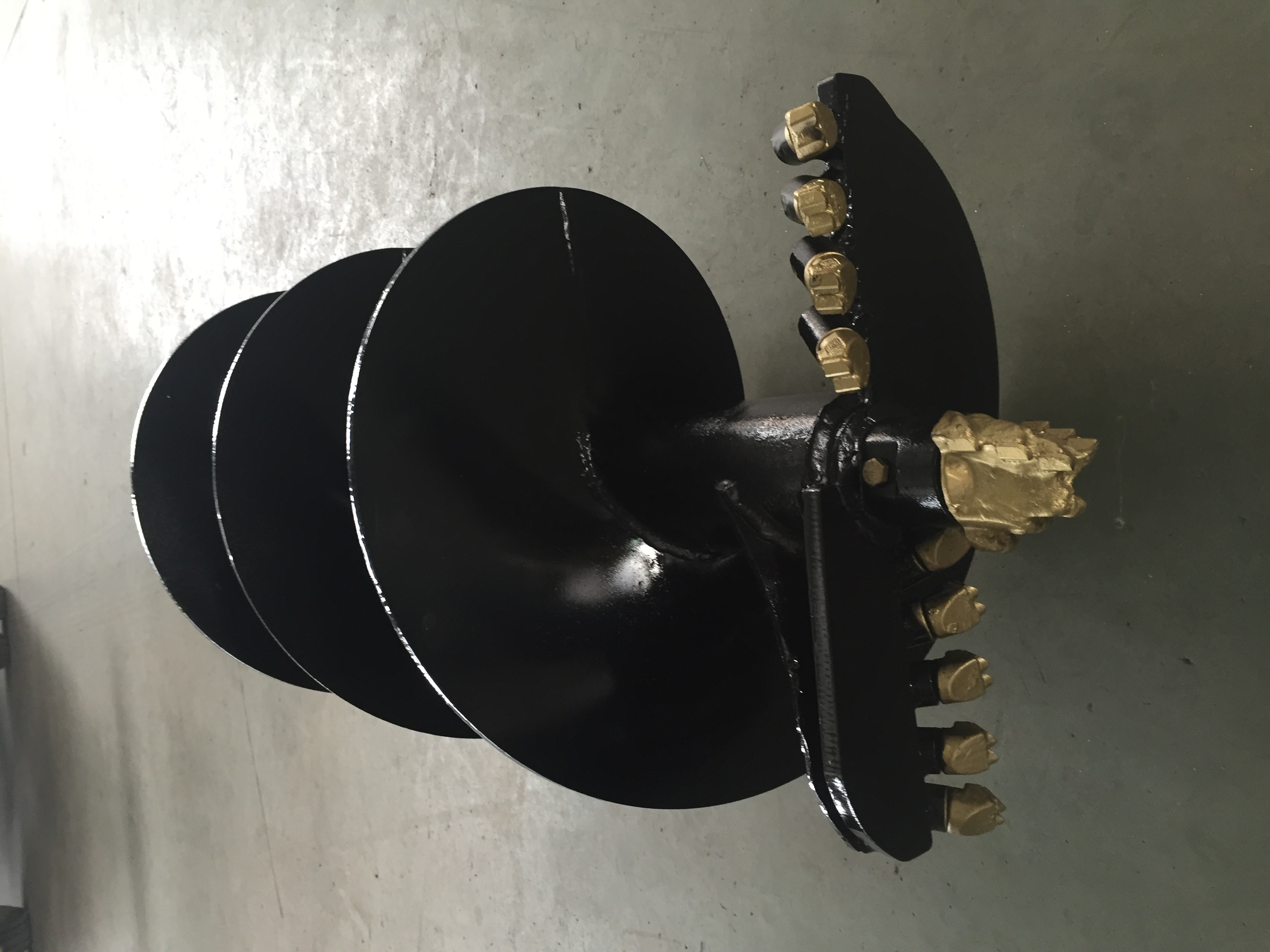

Drill rod(rod standard length:1.5m, rod with auger length: 1m)
Drill Rod Model (mm)
φ 150
φ 200
φ 250
φ 300
φ 400
φ 500
φ 600
φ 700
φ 800
φ 1000
φ 1200
Extention Rod (standard length: 1.5m)
Extension Rod Model (mm)
φ 89 φ 108 φ 146
