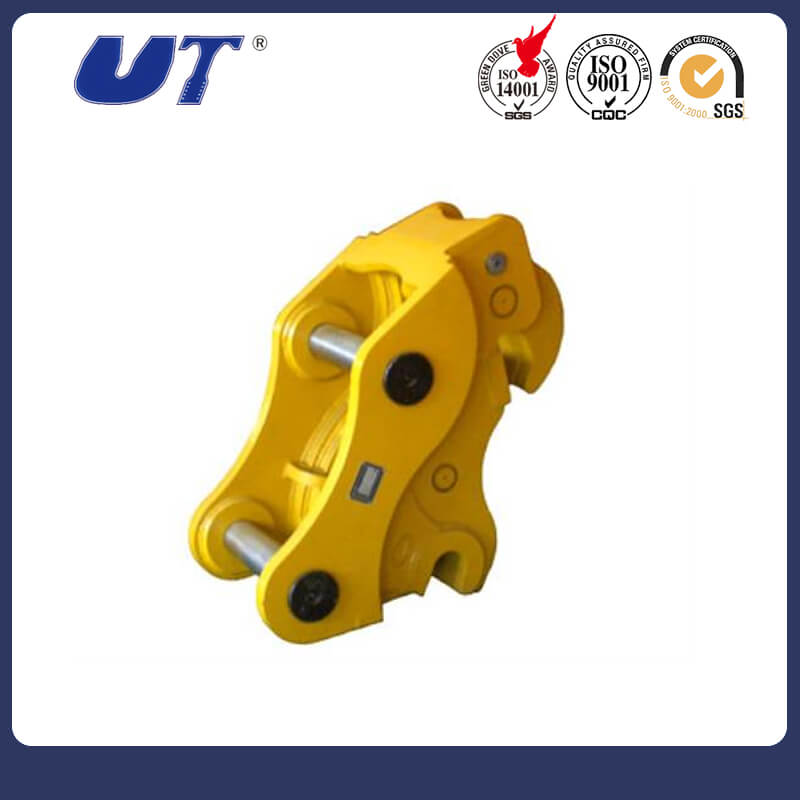

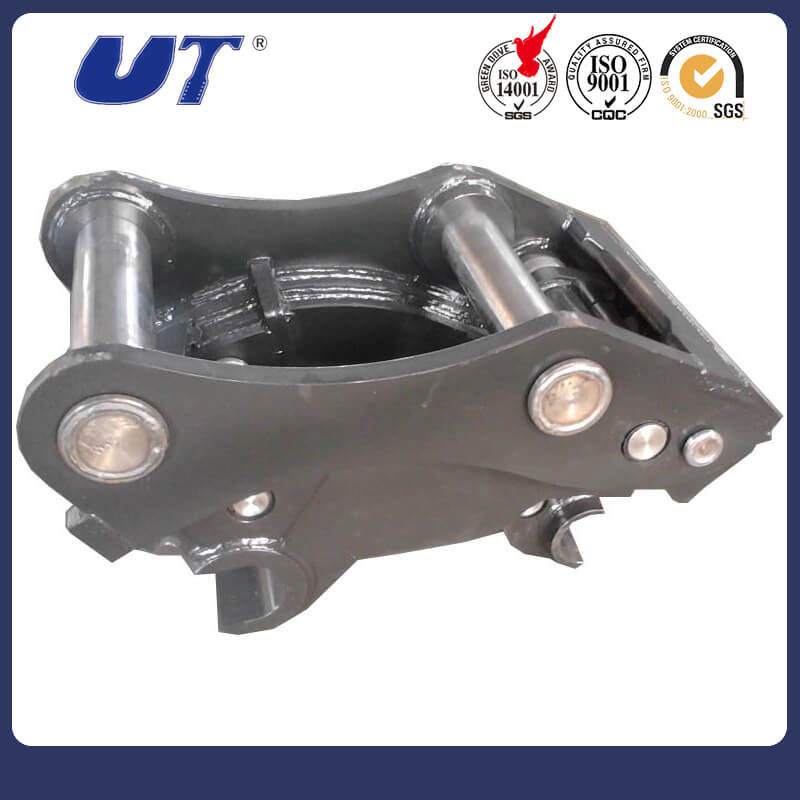

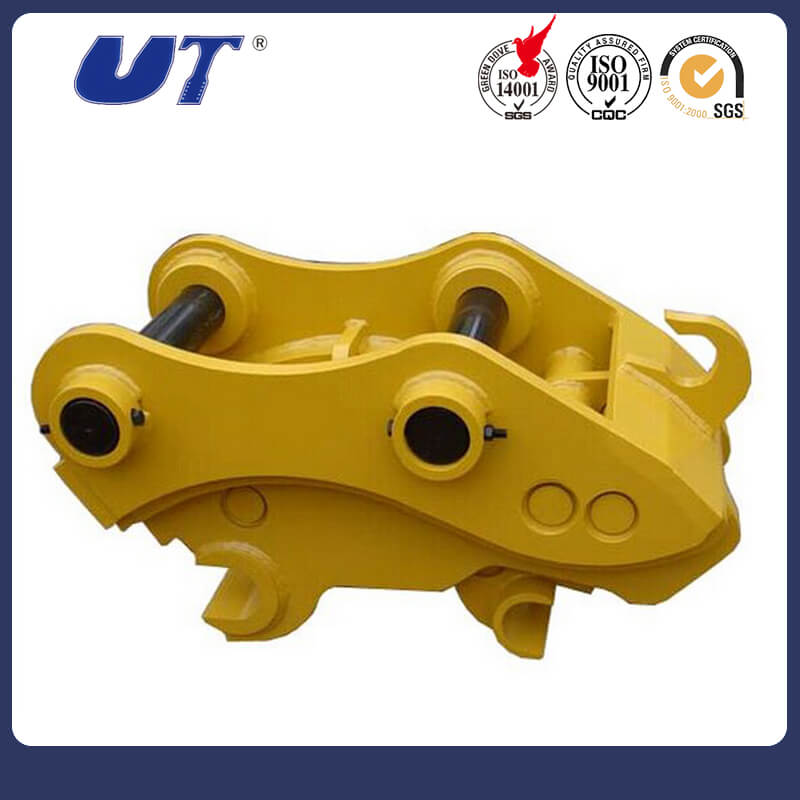

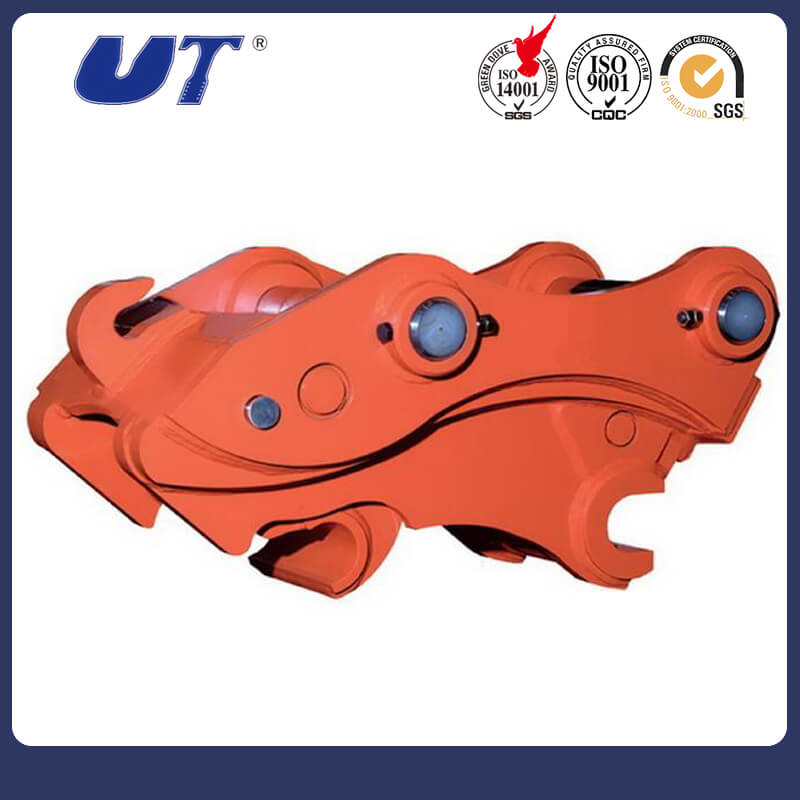

H Type Hydraulic Quick Hitch Coupler
Main Features:
■ Reinforced cylinder withimported oil seals.(Simrit Germany brand)
■ All pins undergo heat treatment
■ Fixed tiger month,long service lift
Hydraulic Types:
|
Item/Model 项目/型号 |
Unit |
UTQC02 |
UTQC04 |
UTQC06 |
UTQC08 |
UTQC08S |
UTQC10 |
UTQC17 |
UTQC20 |
|
Length C总长度 |
mm |
550-600 |
580-650 |
810-830 |
950-970 |
970-1100 |
1082-1150 |
1150-1200 |
1250-1400 |
|
Width B 总宽度 |
mm |
280-300 |
290-310 |
400-420 |
460-480 |
480-600 |
590-615 |
610-640 |
650-760 |
|
Height G总高度 |
mm |
295-310 |
300-330 |
385-400 |
445-470 |
500-540 |
510-545 |
540-585 |
685-780 |
|
Arm width A 小臂开档 |
mm |
155-172 |
181-205 |
230-317 |
290-345 |
300-350 |
345-425 |
380-480 |
420-520 |
|
Pins center distance D 轴中心距 |
mm |
220-275 |
290-350 |
350-400 |
430-480 |
450-505 |
485-530 |
520-630 |
620-750 |
|
Pin diameter 轴直径 |
mm |
40-45 |
45-55 |
50-70 |
70-90 |
90 |
90-100 |
100-110 |
100-140 |
|
Cylinder strocke E 油缸伸缩距离 |
mm |
250-280 |
300-330 |
360-390 |
450-480 |
480-510 |
500-540 |
560-600 |
640-700 |
|
Vertical pins center distance F 上下轴间距 |
mm |
200-210 |
205-220 |
240-255 |
300-310 |
300-320 |
350-370 |
370-380 |
400-500 |
|
Weight 重量 |
kg |
70-100 |
100-120 |
200-220 |
350-400 |
360-420 |
400-550 |
600-800 |
700-1000 |
|
Working pressure 工作压力 |
Kgf/cm² |
30-400 |
30-400 |
30-400 |
30-400 |
30-400 |
30-400 |
30-400 |
30-400 |
|
Necessary flow 必要流量 |
I |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
|
Suit Excavator 适配挖机 |
ton |
4-6 |
6-8 |
12-16 |
18-25 |
25-26 |
26-30 |
30-40 |
40-90 |
The specifications may vary with different excavatos and are subject to change without prior notice for products improvement.
