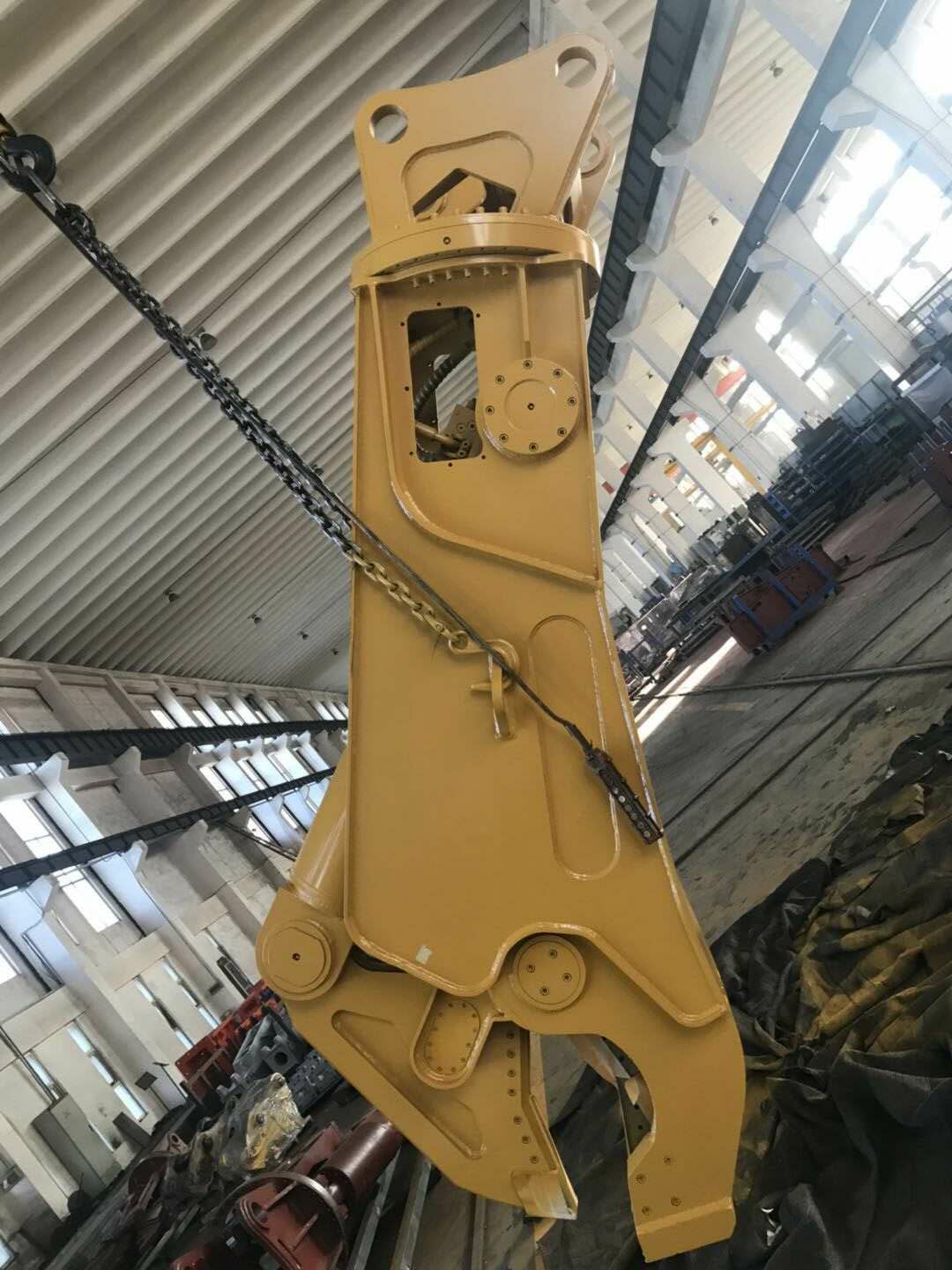

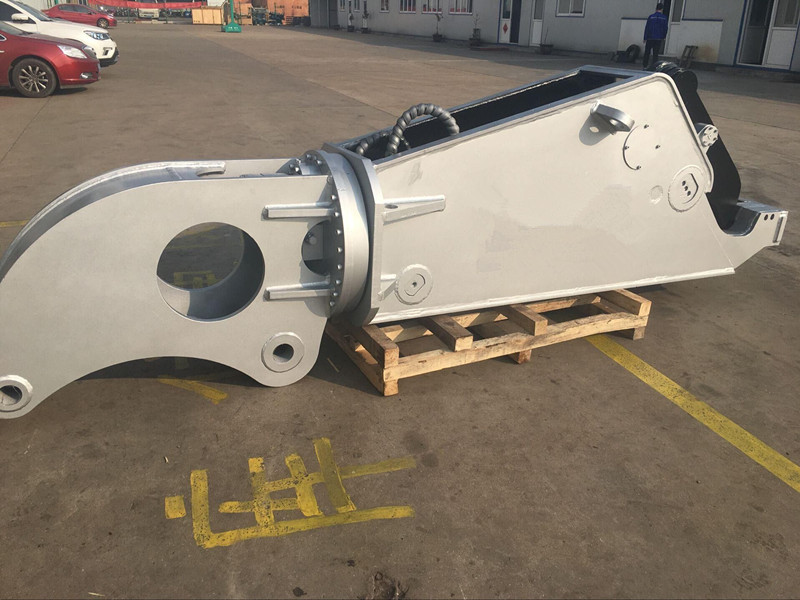

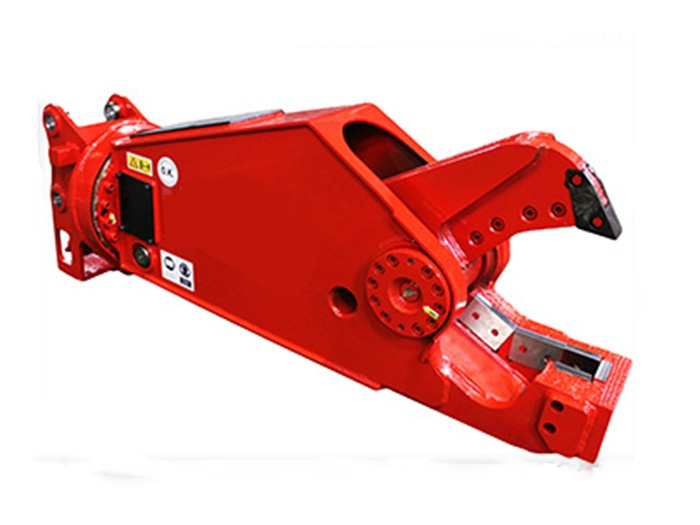

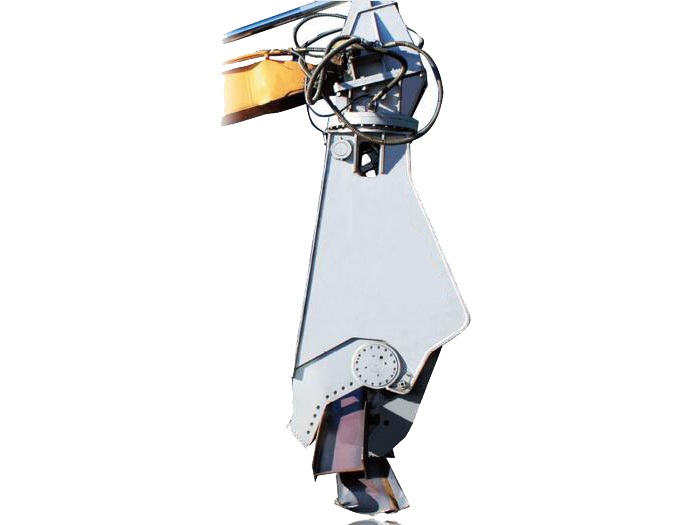

Heavy Duty Hydraulic Power Shear
Features ：
1.Applied to cut H or I beam, car frame, workshop frame, vessel operation, etc
2.Especially suit for heavy duty steel, improve cutting efficiency
3.The Max. Cutting force can achieve 1500 ton
3.The usage of HARDOX shows the excellent durability
4. Speed-up valve system installed improves the production efficiency
|
Item/Model 项目/型号 |
Unit |
UTHSS400 |
UTHSS550X |
|
|
Suit Excavator 适配挖机 |
T |
30-39 |
40-47 |
|
|
Weight重量 |
kg |
2420 |
2980 |
|
|

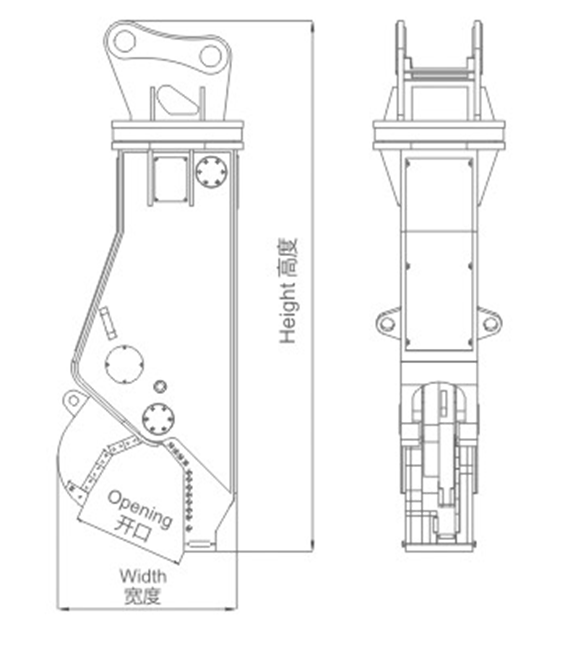

Opening开口 |
mm |
580 |
720 |
|
|
Blade length 刀片长度 |
mm |
80X6 |
100X6 |
|
|
Height高度 |
mm |
2830 |
3260 |
|
|
Width 宽度 |
mm |
950 |
1120 |
|
|
Driving pressure 驱动压力 |
Kg/cm² |
340 |
340 |
|
|
Driving flow 驱动流量 |
lpm |
200-320 |
250-320 |
|
|
Average shearing force（Middle of the blade） 平均剪切力 （刀片中间位置） |
ton |
95 |
120 |
|
|
Cycle Time周期 |
Open张开 |
sec |
2.4 |
3.6 |
|
Close闭合 |
sec |
3.2 |
4.5 |
|
The specifications may vary with different excavators and are subject to change without prior notice for products improvement.
