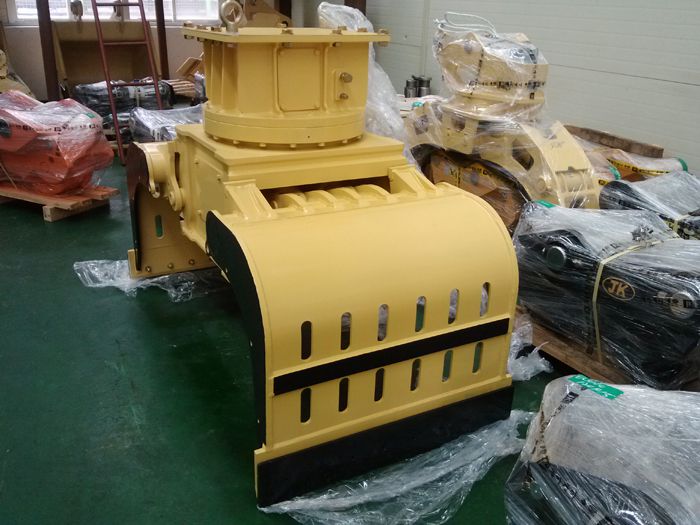

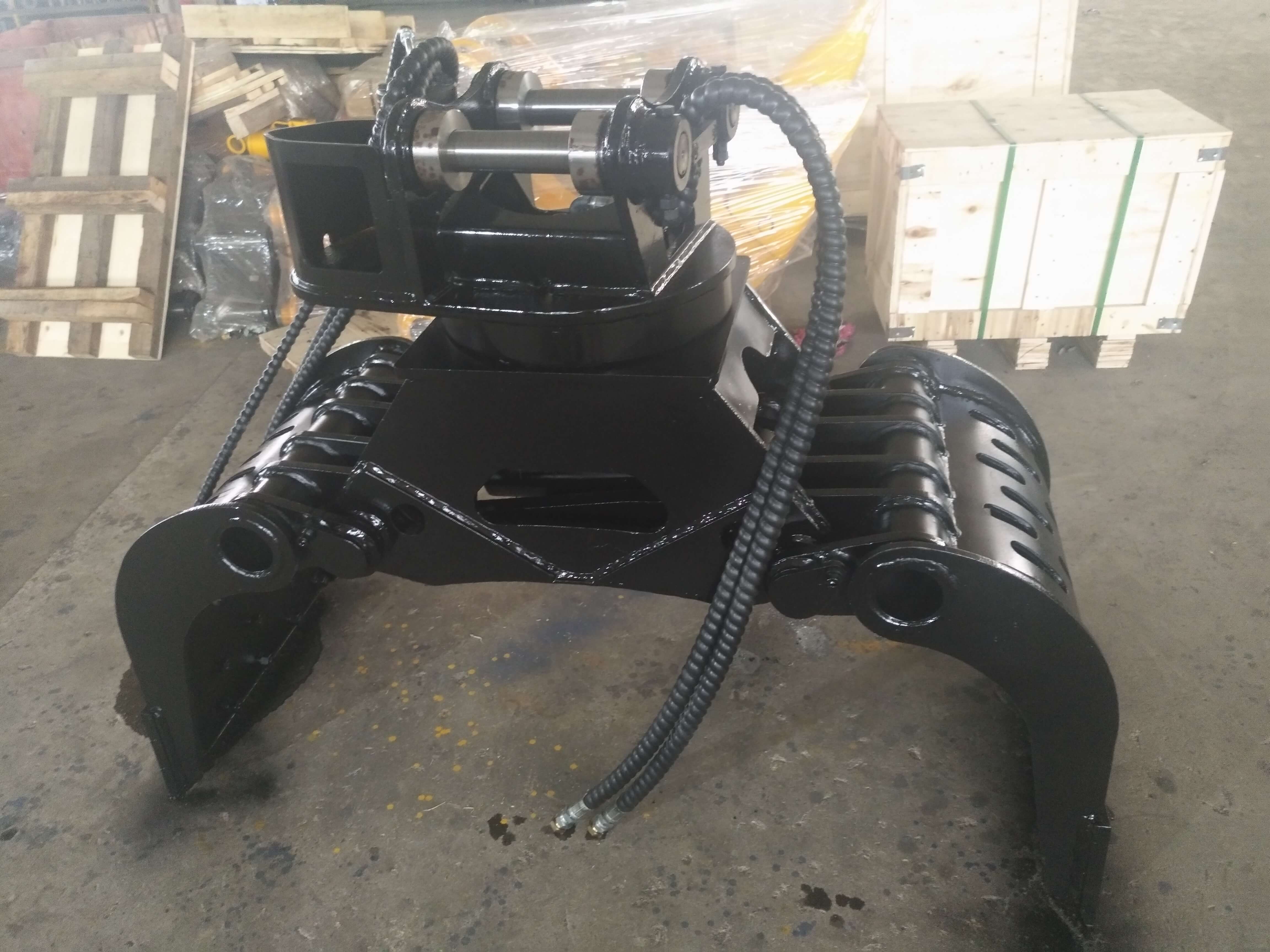

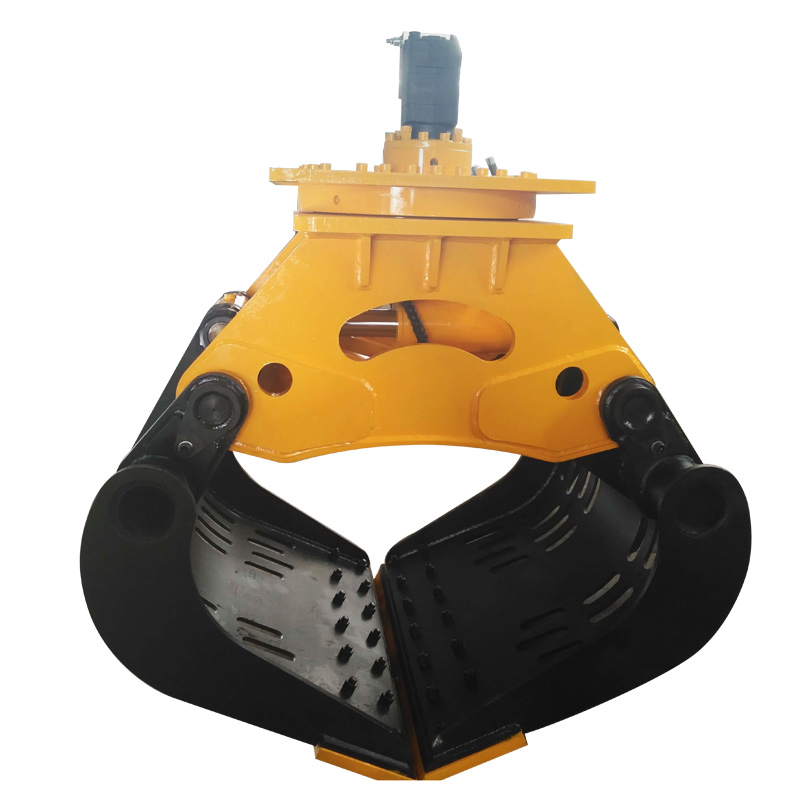

High-strength Grapple

We're here to help:Easy ways to get the answers you need

Feature

Features :

1.Special steel material with high ductility and high wear resistance

2.Imported balance valve motor with buffering and braking kinetic energy.

3.The cylinder is equipped with check valve, more safety for grabbing

4.High strength slewing bearing, the operator can manipulates the swinging speed and its rotating direction for 360 degree clockwise and anticlockwise.

5.With soft tube in the high pressure cylinder, the soft tube is under protection

6.The product can also be designed with no swinging rotation in accordance with customers’ different requirements.

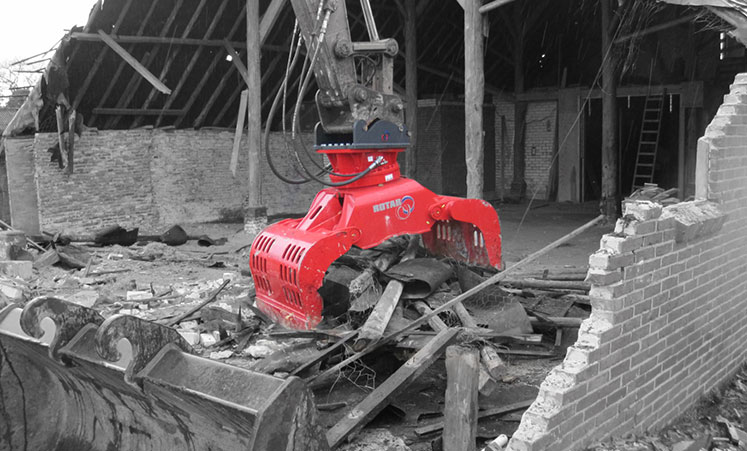

7.Widely used in sand plant, stone-crushing plant, dock, industries like renewable resources and coal recycle, auto decomposition and waste transfer.

8.It can be installed in excavator. One machine has multiple applications and higher efficiency.


Item/Model 项目/型号

Unit

UTHSG-02

UTHSG-04

UTHSG-06

UTHSG-08

UTHSG-10

UTHSG-12

Rotation angle 旋转角度

°

360

360

360

360

360

360

Oil pressure工作压力

bar

110-140

120-160

150-180

160-180

200-280

200-280

Operating flow 工作流量

lpm

30-55

50-100

90-110

100-140

-

-

Suit excavator 适配挖机

ton

4-6

6-9

12-16

17-23

18-28

28-35

Open width 开档A

mm

1150

1200

1550

1850

2094

2172

Height 高度B

mm

860

860

1100

1350

-

-

Width 宽度C

mm

550

600

700

950

-

-

Weight 重量

kg

280

350

950

1350

1500

1700


The specifications may vary with different excavators and are subject to change without prior notice for products improvement.
