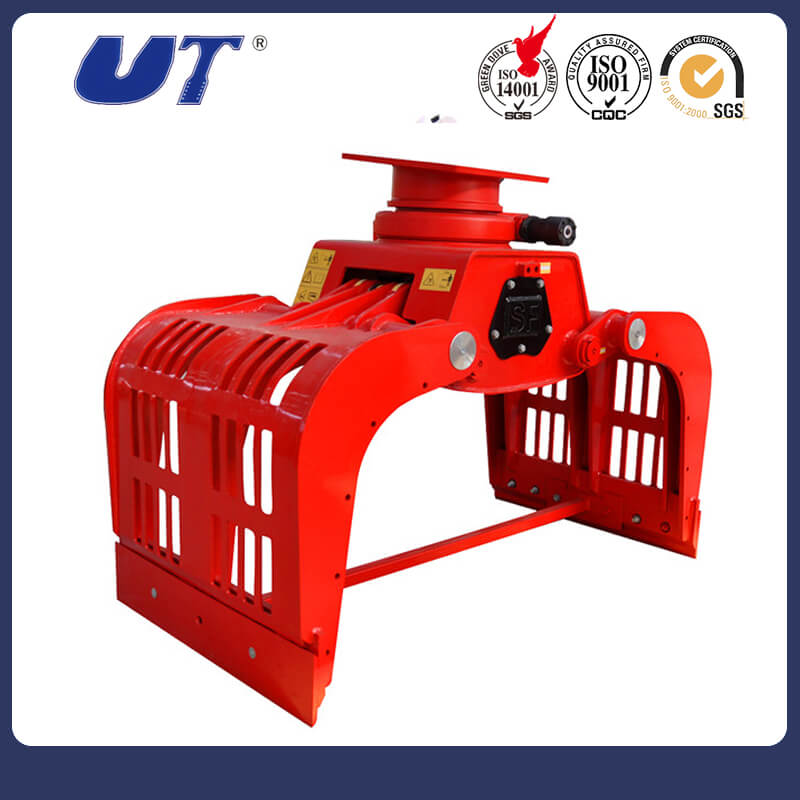

Feature
Features:
■Special steel material with high ductility and high resistance
■ Imported balance valve motor with buffering and braking kinetic energy.
■ The cylinder is equipped with non-return valve, more safety for grabbing
■ High strength rotating support device, the operator can manipulates the swinging speed and its rotating direction for 360 degree clockwise and anticlockwise.
■ With soft tube in the high pressure cylinder, the soft tube is under protection
■ The product can also be designed with no swinging rotation in accordance with customers’ different requirements.
■ Widely used in sand plant, stone-crushing plant, dock, industries like renewable resources and coal recycle, auto decomposition and waste transfer.
■It can be installed in excavator. One machine has multiple applications and higher efficiency.
Models:
|
Item/Model 项目/型号 |
Unit |
UTHSG-02 |
UTHSG-04 |
UTHSG-06 |
UTHSG-08 |
UTHSG-10 |
UTHSG-12 |
|
Rotation angle 旋转角度 |
° |
360 |
360 |
360 |
360 |
360 |
360 |
|
Oil pressure工作压力 |
bar |
110-140 |
120-160 |
150-180 |
160-180 |
200-280 |
200-280 |
|
Operating flow 工作流量 |
lpm |
30-55 |
50-100 |
90-110 |
100-140 |
- |
- |
|
Suit excavator 适配挖机 |
ton |
4-6 |
6-9 |
12-16 |
17-23 |
18-28 |
28-35 |
|
Open width 开档A |
mm |
1150 |
1200 |
1550 |
1850 |
2094 |
2172 |
|
Height 高度B |
mm |
860 |
860 |
1100 |
1350 |
- |
- |
|
Width 宽度C |
mm |
550 |
600 |
700 |
950 |
- |
- |
|
Weight 重量 |
kg |
280 |
350 |
950 |
1350 |
1500 |
1700 |
The specifications may vary with different excavators and are subject to change without prior notice for products improvement.
