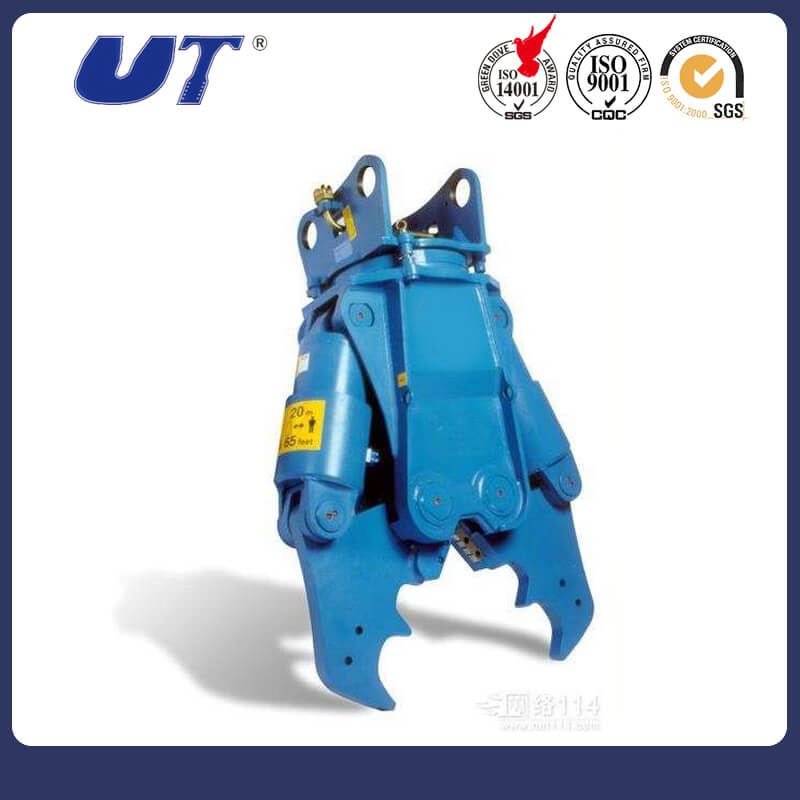

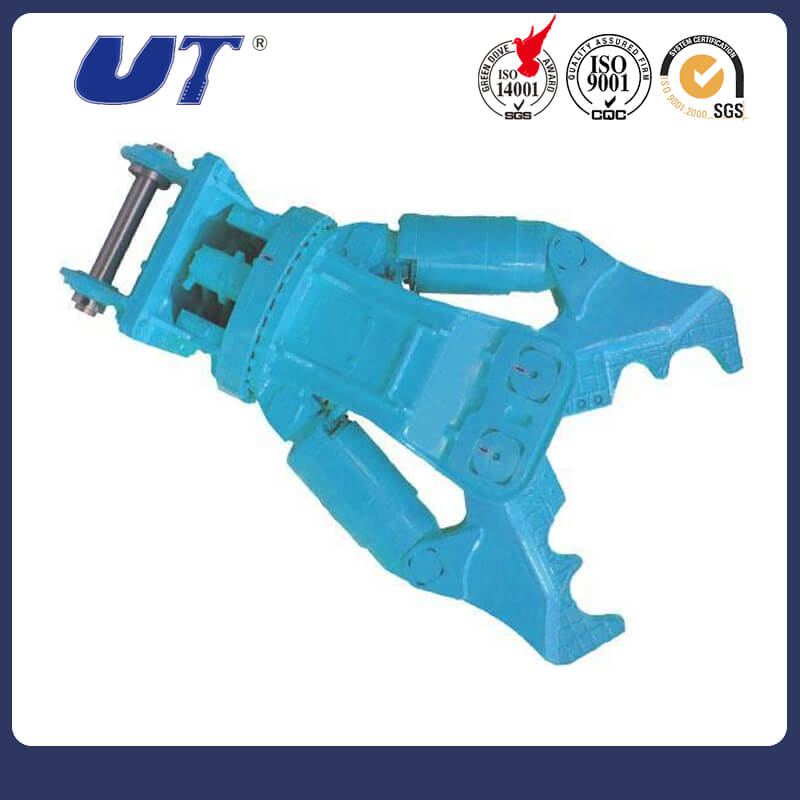

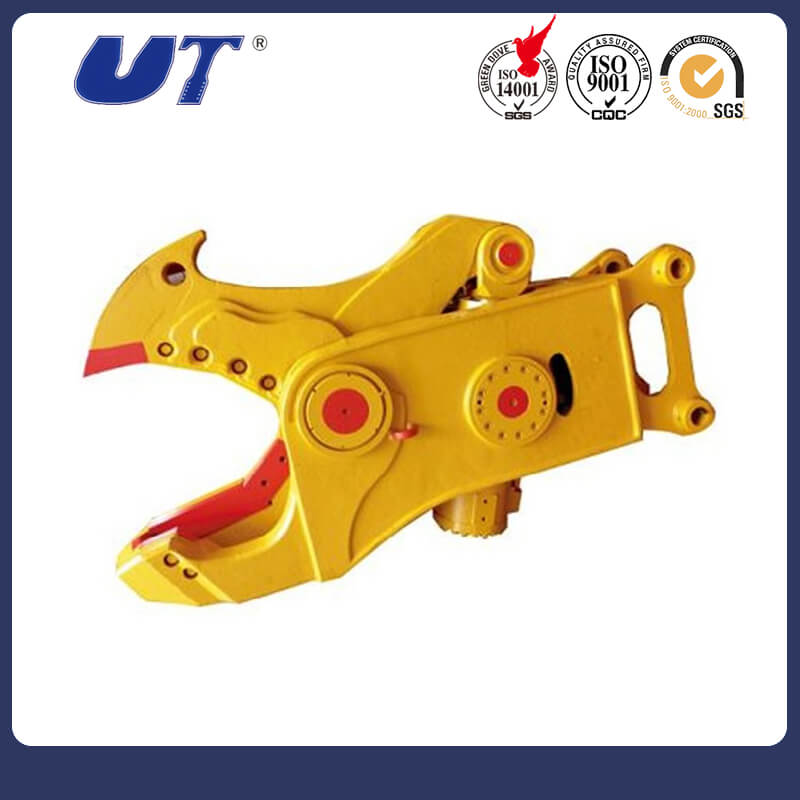

Multi Hydraulic Shear
Features：
1.The unique design and innovation ensure the high-efficiency operation and the strong cutting force.
2.Elongation of the hydraulic shear increases through adopting special size of jaw and special designed blade..
3.Powerful cylinder enhances closing force of the jaw thus it can cut the hardest steel. High grade material ensure the maximum strength and wear resistance of the hydraulic shear, thus the sheare has a longer service time.
4.360°rotation ensures precise positioning of the product
5.suitable for a variety of working environment, not only outstanding performance in handling broken-dismantled work, but also in recycling of concrete material.
|
|
A type |
B type |
||||||||||
|
Item/Model 项目/型号 |
Unit |
UTHS10V |
UTHS15V |
UTHS20V |
UTHS25V |
UTHS30V |
UTHS10V |
UTHS15V |
UTHS20V |
UTHS25V |
UTHS30V |
|
|
Suit Excavator 适配挖机 |
T |
6-9 |
15 |
18-24 |
35 |
45 |
6-9 |
15 |
18-24 |
35 |
45 |
|
|
Weight重量 |
kg |
1250 |
1580 |
2100 |
2750 |
5350 |
1320 |
1640 |
2250 |
2920 |
5160 |
|
|
Opening开口 |
mm |
750 |
890 |
980 |
1100 |
1400 |
480 |
550 |
620 |
750 |
860 |
|
|
Blade length 刀片长度 |
mm |
140 |
160 |
200 |
240 |
300 |
130x4/320x2 |
150x4/360x2 |
170x4/380x2 |
200x4/450x2 |
200x5/600x2 |
|
|
Height高度 |
mm |
1620 |
2100 |
2280 |
2450 |
2850 |
1720 |
2180 |
2450 |
2850 |
3240 |
|
|
Width 宽度 |
mm |
1120 |
1280 |
1450 |
1720 |
2350 |
980 |
1040 |
1250 |
1580 |
2060 |
|
|
Crushing force 粉碎力 |
ton |
45 |
58 |
70 |
85 |
95 |
25 |
32 |
40 |
55 |
65 |
|
|
Cutting force B剪切力 |
ton |
90 |
115 |
130 |
165 |
260 |
45 |
50 |
65 |
80 |
100 |
|
|
Rated pressure 额定压力 |
bar |
300 |
320 |
320 |
320 |
320 |
300 |
320 |
320 |
320 |
320 |
|
|
Rated flow 额定流量 |
lpm |
180 |
230 |
240 |
260 |
380 |
180 |
230 |
240 |
260 |
380 |
|
|
Rated pressure 工作压力 |
bar |
260 |
280 |
300 |
300 |
300 |
260 |
280 |
300 |
300 |
300 |
|
|
Cycle Time周期 |
Open张开 |
sec |
1.8 |
2.1 |
2.9 |
3.4 |
4.3 |
1.8 |
2.1 |
2.9 |
3.4 |
4.3 |
|
Close闭合 |
sec |
1.7 |
2.3 |
2.7 |
4.1 |
5.5 |
1.7 |
2.3 |
2.7 |
4.1 |
5.5 |
|
The specifications may vary with different excavators and are subject to change without prior notice for products improvement.
