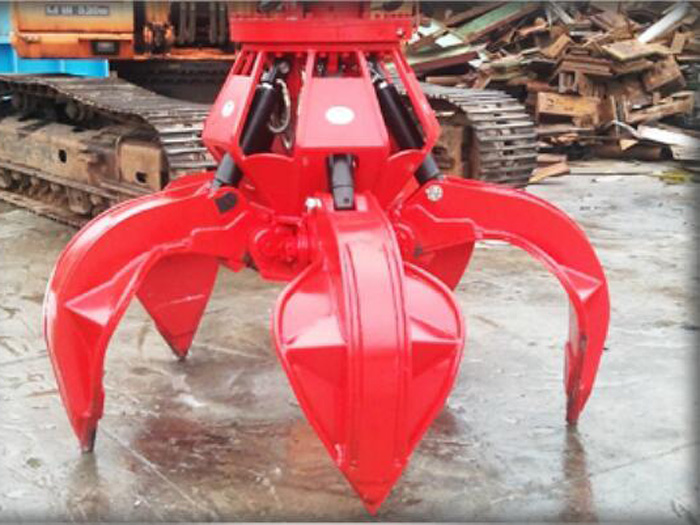

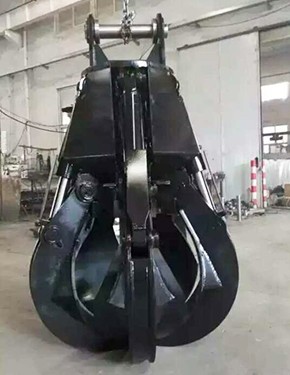

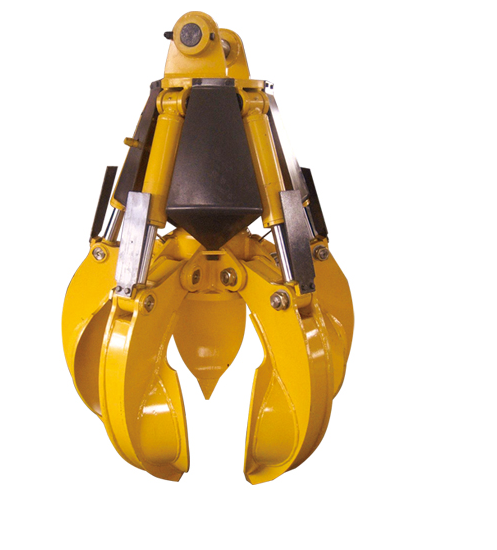

Orange Peel Grapple
  • Orange Peel Grapple
  • Orange Peel Grapple
  • Orange Peel Grapple
  • Orange Peel Grapple

Orange Peel Grapple

We're here to help:Easy ways to get the answers you need

Feature

Features

1.Special steel material with high ductility and high wear resistance


2.Imported balance valve motor with buffering and braking kinetic energy


3.The cylinder is equipped with check valve, more safety for grabbing


4.High strength  slewing bearing, the operator can manipulates the swinging speed and its rotating direction for 360 degree clockwise and anticlockwise


5.With soft tube in the high pressure cylinder, the soft tube is under protection


6.The product can also be designed with no swinging rotation in accordance with customers’ different requirements


7.Widely used in sand plant, stone-crushing plant, dock, industries like renewable resources and coal recycle, auto decomposition and waste transfer.

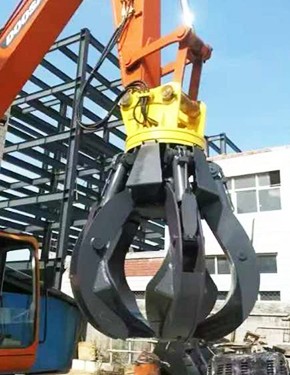

8.It can be installed in excavator. One machine has multiple applications and higher efficiency.


Item/Model 项目/型号

Unit

UTOPG04

UTOPG06

UTOPG08

UTOPG10

Weight 重量

kg

510

1200

1560

1800

Max jaw opening 最大开口

mm

1750

1780

1950

2180

Height of closed grapple 闭合高度

mm

1440

1540

1650

1860

Set up pressure 最大压力

bar

260

260

260

260

Operating flux 最大流量

lpm

20-70

60-120

60-120

60-120

Cylinder volume 容量

litre

400

600

800

1000

No.of jaw 瓣数

piece

5-6

5-6

5-6

5-6

Suitable excavator 适配挖机

ton

5-11

12-18

18-25

26-35


The specifications may vary with different excavators and are subject to change without prior notice for products improvement.
