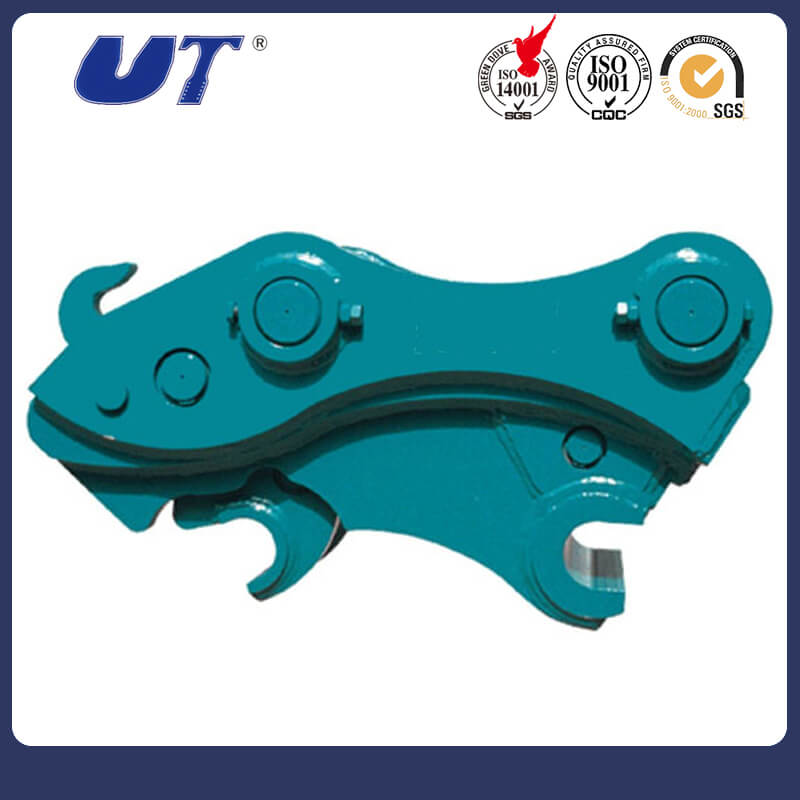

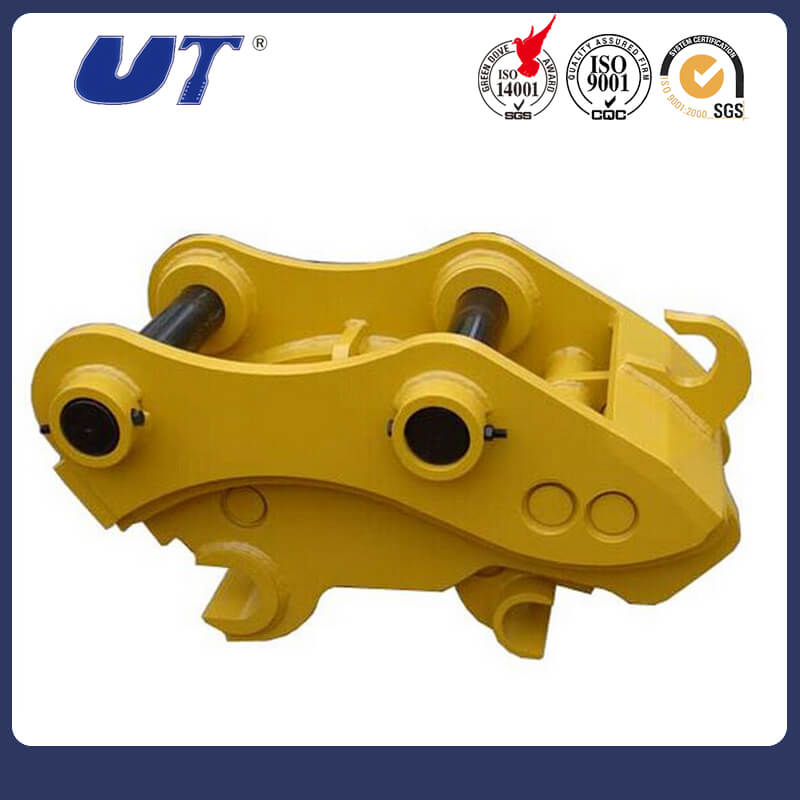

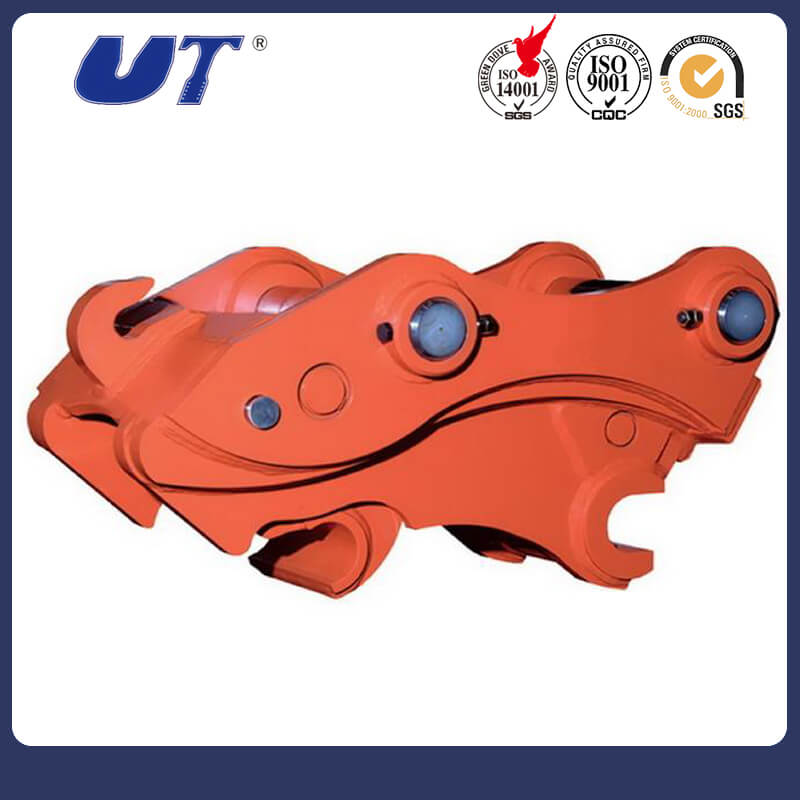

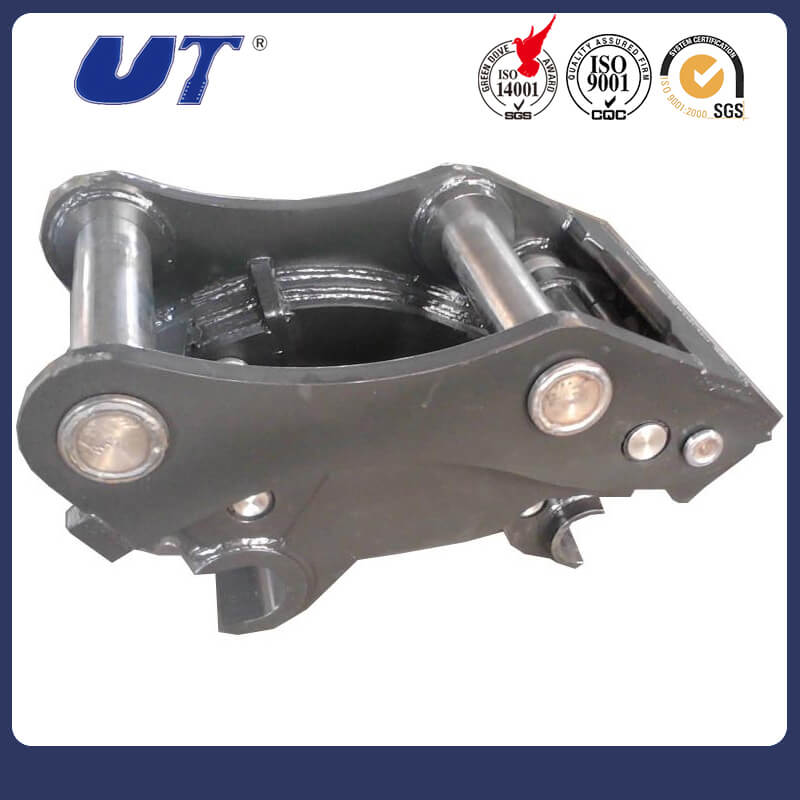

P Type Hydraulic Quick Hitch Coupler
Main Features:
■Strong saftey pin at accurate position
■Extensible tiger month,which is more wear-resistant and more strong.
Apparitions: All models of excavators
Unit
Mini
UTQC02
UTQC04
UTQC06
UTQC08
UTQC08S
UTQC10
UTQC17
Length C总长度
mm
300-450
520-542
581-610
760
920-955
950-1000
965-1100
1005-1150
Width B 总宽度
mm
150-250
260-266
265-283
351-454
450-483
445-493
543-572
602-666
Height G总高度
mm
225-270
312
318
400
512
512-540
585
560-615
Arm width A 小臂开档
mm
82-180
155-172
181-205
230-317
290-345
300-350
345-425
380-480
Pins center distance D 轴中心距
mm
95-220
220-275
290-350
350-400
430-480
450-505
485-530
520-630
Pin diameter 轴直径
mm
20-45
40-45
45-55
50-70
70-90
90
90-100
100-110
Cylinder strocke E 油缸伸缩距离
mm
95-200
200-300
300-350
340-440
420-510
450-530
460-560
500-650
Vertical pins center distance F 上下轴间距
mm
170-190
200-210
205-220
240-255
300
320
350-370
370-380
Weight 重量
kg
30-40
50-75
80-110
170-210
350-390
370-410
410-520
550-750
Working pressure 工作压力
Kgf/cm²
30-400
30-400
30-400
30-400
30-400
30-400
30-400
30-400
Necessary flow 必要流量
I
10-20
10-20
10-20
10-20
10-20
10-20
10-20
10-20
Suit Excavator 适配挖机
ton
1-4
4-6
6-8
12-16
18-25
25-26
26-30
30-40
The specifications may vary with different excavatos and are subject to change without prior notice for products improvement.
