Pile Drive

We're here to help:Easy ways to get the answers you need

Feature

Pile Driver Features:

1. Special steel material with high ductility and high resistance.

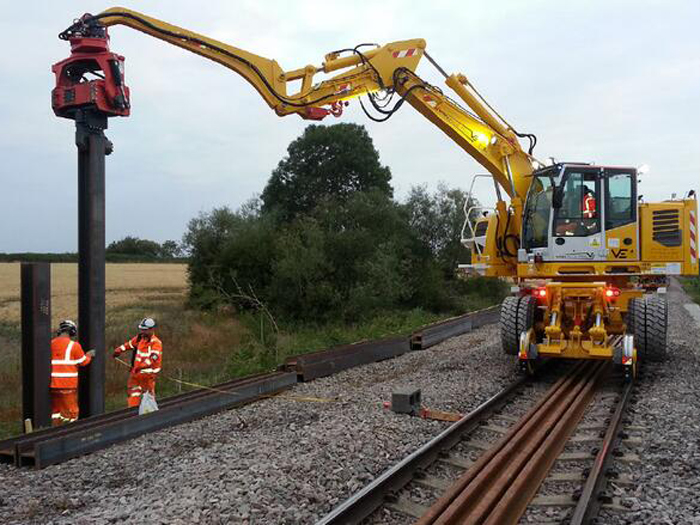

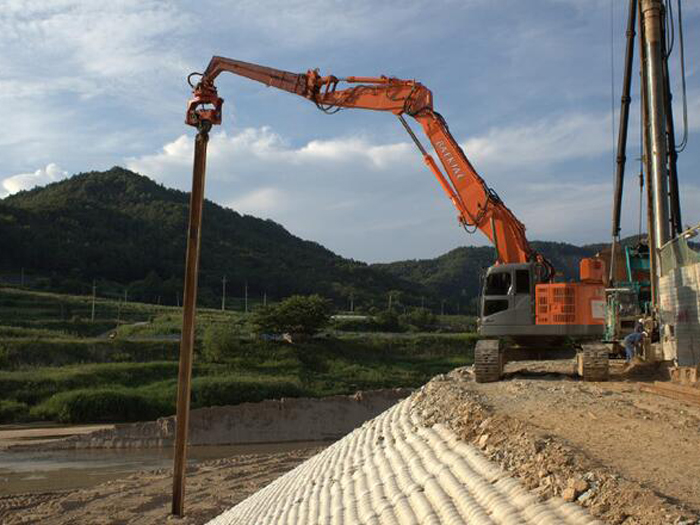

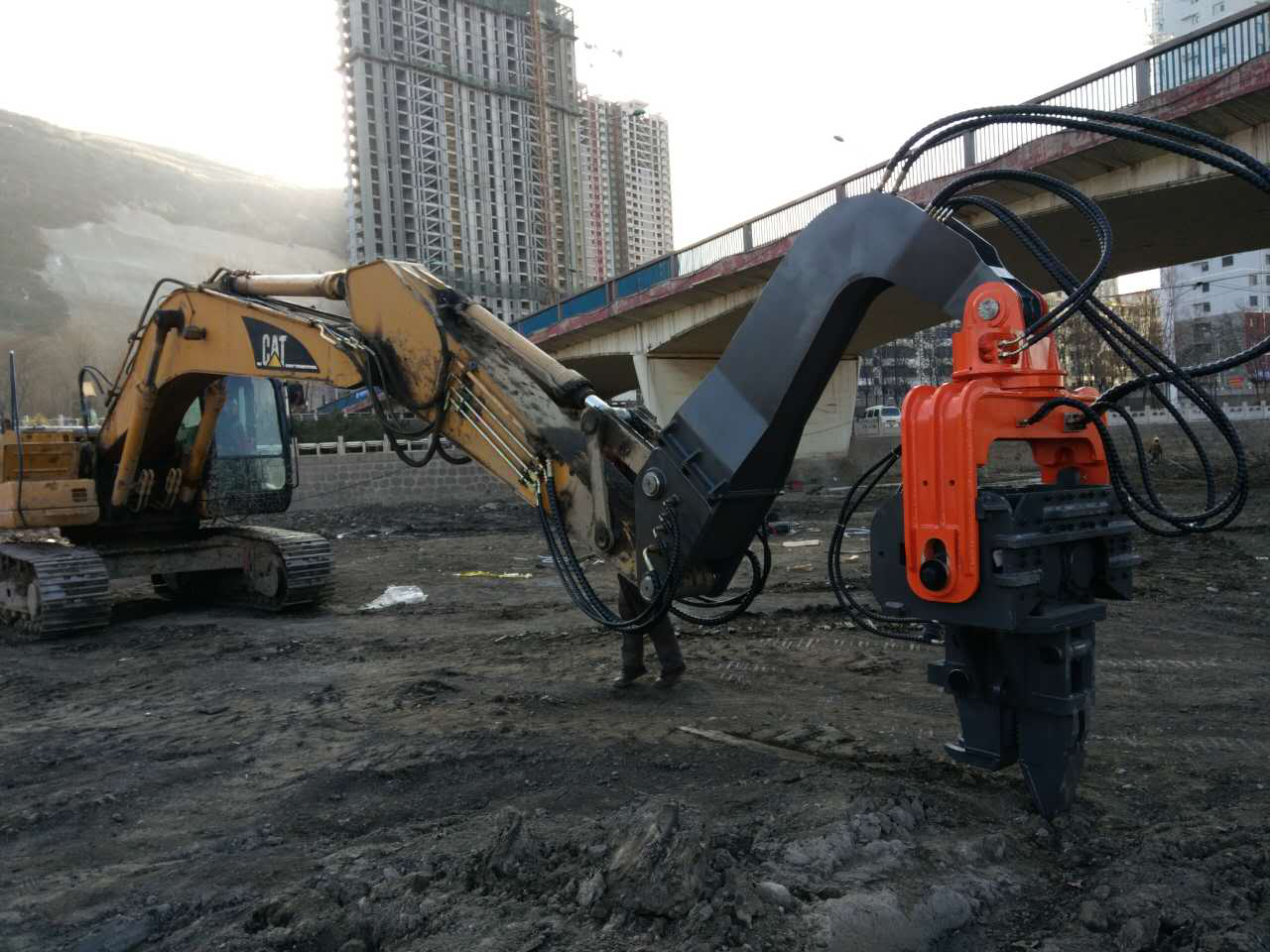

2.It can be installed on the hydraulic excavator. The power is provided by the hydraulic system on the excavator. The installment is easy with convenient and flexible operation.

3.Driven by motor, utilizing a kind of excited force produced by up and down reciprocating motion that caused by centrifugal force.

4.It effectively avoids hydraulic oil pollution and metal residue from damaging the excavator’s hydraulic system.

5.High efficiency, Mute, Used for piling and uplifting pile.

6.Original imported motor, more durable, high swinging speed, higher torque, faster exciting force and frequency.

7.All bearings are originally imported with longer life service.

8.The shafts of all key parts use the same material as module. With heat-treatment, the life service time is ensured.

9.Different varieties piles like steel sheet pile, cement pie, steel pipe pile, round pile and square pile could be piled into the ground.

10.Flexible single chuck, double chuck styles are designable which could also be combined in the crane. Adjustable range for height enables more choices.

Item/Model

Unit

UTPD200

UTPD300

UTPD400

UTPD500

Weight

kg

1450

1550

1650

1800

Eccentric Moment

Nm

40

50

65

85

Frequency

rpm

2800

2800

2800

2800

Pressure

Kg/cm2

280

280

300

300

Flow

L/min

155

168

210

265

Clamp Weight

Kg

350

400

480

550

Arm Weight

Kg

500

600

650

720

Suitable Excavator

Ton

20-30

30-40

40-50

50-60

The specifications may vary with different excavators and are subject to change without prior notice for products improvement.

parameter

Product content to be updated ......
