Feature

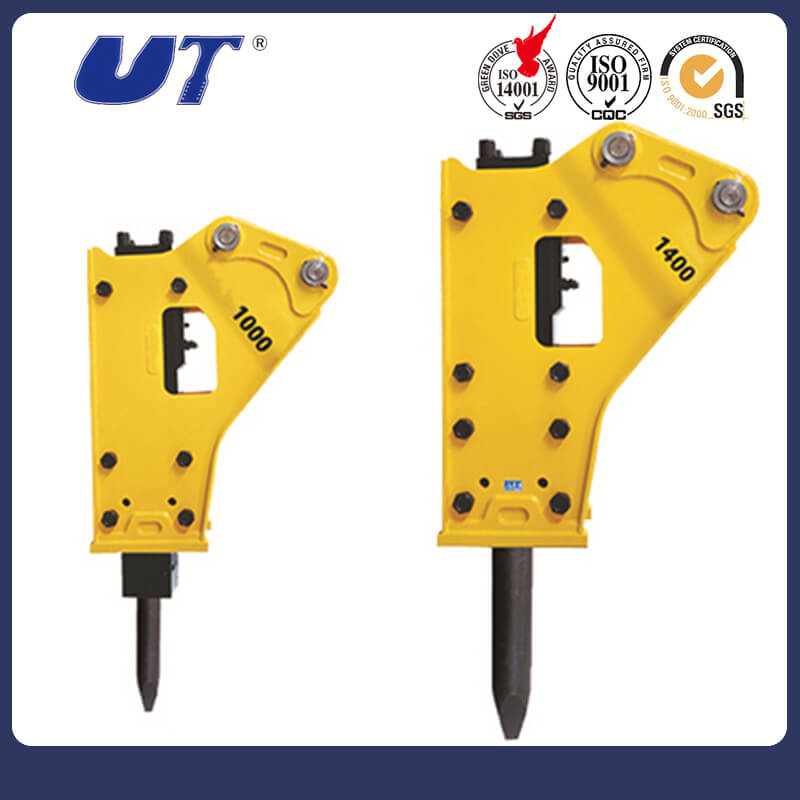

Side Type- Light Series45-100
UTHB-S-45
|
Cylinder Weight |
62 |
kg |
|
Total Weight |
98 |
kg |
|
Overall Length |
1071 |
mm |
|
Required Oil Flow |
20-40 |
L/min |
|
Working Pressure |
90-120 |
Kg/cm2 |
|
Impact Rate |
700-1200 |
b.p.m |
|
Chisel Diameter |
D45 |
mm |
|
Application Excavator |
0.8-1.5 |
ton |
UTHB-S-53
|
Cylinder Weight |
80 |
kg |
|
Total Weight |
145 |
kg |
|
Overall Length |
1170 |
mm |
|
Required Oil Flow |
20-50 |
L/min |
|
Working Pressure |
90-120 |
Kg/cm2 |
|
Impact Rate |
600-1100 |
b.p.m |
|
Chisel Diameter |
D53 |
mm |
|
Application Excavator |
2.5-4.5 |
ton |
UTHB-S-70
|
Cylinder Weight |
146 |
kg |
|
Total Weight |
275 |
kg |
|
Overall Length |
1398 |
mm |
|
Required Oil Flow |
40-70 |
L/min |
|
Working Pressure |
110-140 |
Kg/cm2 |
|
Impact Rate |
500-900 |
b.p.m |
|
Chisel Diameter |
D70 |
mm |
|
Application Excavator |
4-7 |
ton |
UTHB-S-75
|
Cylinder Weight |
207 |
kg |
|
Total Weight |
373 |
kg |
|
Overall Length |
1545 |
mm |
|
Required Oil Flow |
50-90 |
L/min |
|
Working Pressure |
120-150 |
Kg/cm2 |
|
Impact Rate |
400-800 |
b.p.m |
|
Chisel Diameter |
D75 |
mm |
|
Application Excavator |
6-9 |
ton |
UTHB-S-85
|
Cylinder Weight |
263 |
kg |
|
Total Weight |
536 |
kg |
|
Overall Length |
1778 |
mm |
|
Required Oil Flow |
60-100 |
L/min |
|
Working Pressure |
130-160 |
Kg/cm2 |
|
Impact Rate |
400-800 |
b.p.m |
|
Chisel Diameter |
D85 |
mm |
|
Application Excavator |
7-14 |
ton |
UTHB-S-100
|
Cylinder Weight |
444 |
kg |
|
Total Weight |
768 |
kg |
|
Overall Length |
1946 |
mm |
|
Required Oil Flow |
80-110 |
L/min |
|
Working Pressure |
150-170 |
Kg/cm2 |
|
Impact Rate |
350-700 |
b.p.m |
|
Chisel Diameter |
D100 |
mm |
|
Application Excavator |
11-16 |
ton |
Side Type - Medium Series 125-155
UTHB-S-125
|
Cylinder Weight |
562 |
kg |
|
Total Weight |
1336 |
kg |
|
Overall Length |
2236 |
mm |
|
Required Oil Flow |
90-120 |
L/min |
|
Working Pressure |
150-170 |
Kg/cm2 |
|
Impact Rate |
350-650 |
b.p.m |
|
Chisel Diameter |
D125 |
mm |
|
Application Excavator |
15-18 |
ton |
UTHB-S-135
|
Cylinder Weight |
713 |
kg |
|
Total Weight |
1608 |
kg |
|
Overall Length |
2283 |
mm |
|
Required Oil Flow |
120-180 |
L/min |
|
Working Pressure |
160-180 |
Kg/cm2 |
|
Impact Rate |
350-500 |
b.p.m |
|
Chisel Diameter |
D135 |
mm |
|
Application Excavator |
18-21 |
ton |
UTHB-S-140
|
Cylinder Weight |
793 |
kg |
|
Total Weight |
1799 |
kg |
|
Overall Length |
2411 |
mm |
|
Required Oil Flow |
120-180 |
L/min |
|
Working Pressure |
160-180 |
Kg/cm2 |
|
Impact Rate |
350-500 |
b.p.m |
|
Chisel Diameter |
D140 |
mm |
|
Application Excavator |
18-26 |
ton |
UTHB-S-150
|
Cylinder Weight |
954 |
kg |
|
Total Weight |
2577 |
kg |
|
Overall Length |
2611 |
mm |
|
Required Oil Flow |
150-210 |
L/min |
|
Working Pressure |
160-180 |
Kg/cm2 |
|
Impact Rate |
300-450 |
b.p.m |
|
Chisel Diameter |
D150 |
mm |
|
Application Excavator |
25-30 |
ton |
UTHB-S-155
|
Cylinder Weight |
1102 |
kg |
|
Total Weight |
2755 |
kg |
|
Overall Length |
1843 |
mm |
|
Required Oil Flow |
180-240 |
L/min |
|
Working Pressure |
160-180 |
Kg/cm2 |
|
Impact Rate |
300-450 |
b.p.m |
|
Chisel Diameter |
D155 |
mm |
|
Application Excavator |
28-35 |
ton |
Side Type - Heavy Series 165-210
UTHB-S-165
|
Cylinder Weight |
1238 |
kg |
|
Total Weight |
3233 |
kg |
|
Overall Length |
2907 |
mm |
|
Required Oil Flow |
200-260 |
L/min |
|
Working Pressure |
160-180 |
Kg/cm2 |
|
Impact Rate |
250-460 |
b.p.m |
|
Chisel Diameter |
D165 |
mm |
|
Application Excavator |
30-45 |
ton |
UTHB-S-175
|
Cylinder Weight |
1694 |
kg |
|
Total Weight |
3935 |
kg |
|
Overall Length |
3048 |
mm |
|
Required Oil Flow |
210-290 |
L/min |
|
Working Pressure |
160-180 |
Kg/cm2 |
|
Impact Rate |
150-300 |
b.p.m |
|
Chisel Diameter |
D175 |
mm |
|
Application Excavator |
40-55 |
ton |
UTHB-S-180
|
Cylinder Weight |
1815 |
kg |
|
Total Weight |
4245 |
kg |
|
Overall Length |
2260 |
mm |
|
Required Oil Flow |
280-330 |
L/min |
|
Working Pressure |
160-180 |
Kg/cm2 |
|
Impact Rate |
150-250 |
b.p.m |
|
Chisel Diameter |
D180 |
mm |
|
Application Excavator |
45-60 |
ton |
UTHB-S-190
|
Cylinder Weight |
1892 |
kg |
|
Total Weight |
4773 |
kg |
|
Overall Length |
3169 |
mm |
|
Required Oil Flow |
270-350 |
L/min |
|
Working Pressure |
170-190 |
Kg/cm2 |
|
Impact Rate |
150-250 |
b.p.m |
|
Chisel Diameter |
D190 |
mm |
|
Application Excavator |
45-75 |
ton |
UTHB-S-210
|
Cylinder Weight |
2649 |
kg |
|
Total Weight |
6639 |
kg |
|
Overall Length |
3845 |
mm |
|
Required Oil Flow |
350-450 |
L/min |
|
Working Pressure |
180-200 |
Kg/cm2 |
|
Impact Rate |
120-220 |
b.p.m |
|
Chisel Diameter |
D210 |
mm |
|
Application Excavator |
70-100 |
ton |
