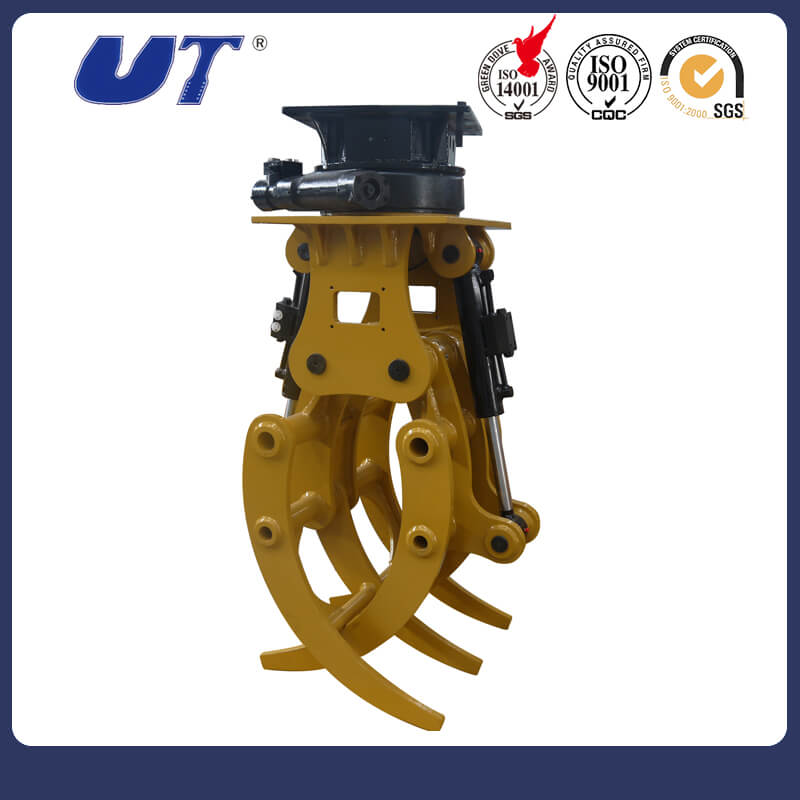

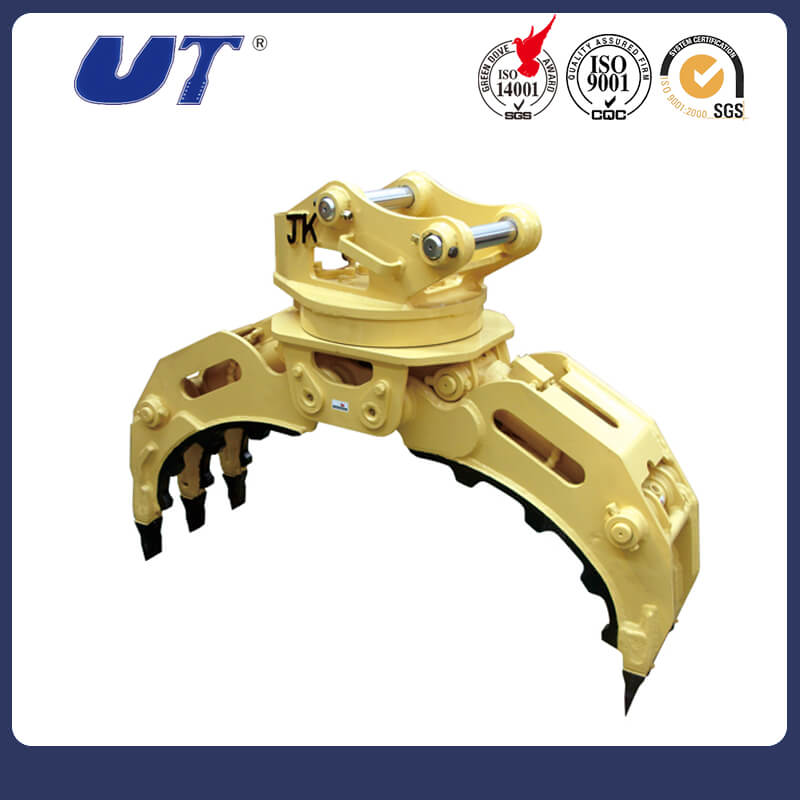

Hydraulic Rotating Log Grapple

OEMYes
ColorYellow, Orange, Black, Red, Green
Warranty1 year
ODMYes

We're here to help:Easy ways to get the answers you need

Chat Now Send Email

Feature

Features:

1.Special steel material with high ductility and high resistance

2.Imported balance valve motor with buffering and braking kinetic energy.
3.The cylinder is equipped with non-return valve, more safety for grabbing
4.High strength rotating support device, the operator can manipulates the swinging speed and its rotating direction for 360 degree clockwise and anticlockwise.
5.With the biggest open width of the same level product. Best performance with minimum weight. Special customized big cylinder. 6.Capable of grabbing heavier stuff.?Service life is prolonged and maintenance expense is reduced owning to the special made rotating gear.
7.Flexible design：the grabbing shape can be changed as customer request in order to meet the requirement for operation.

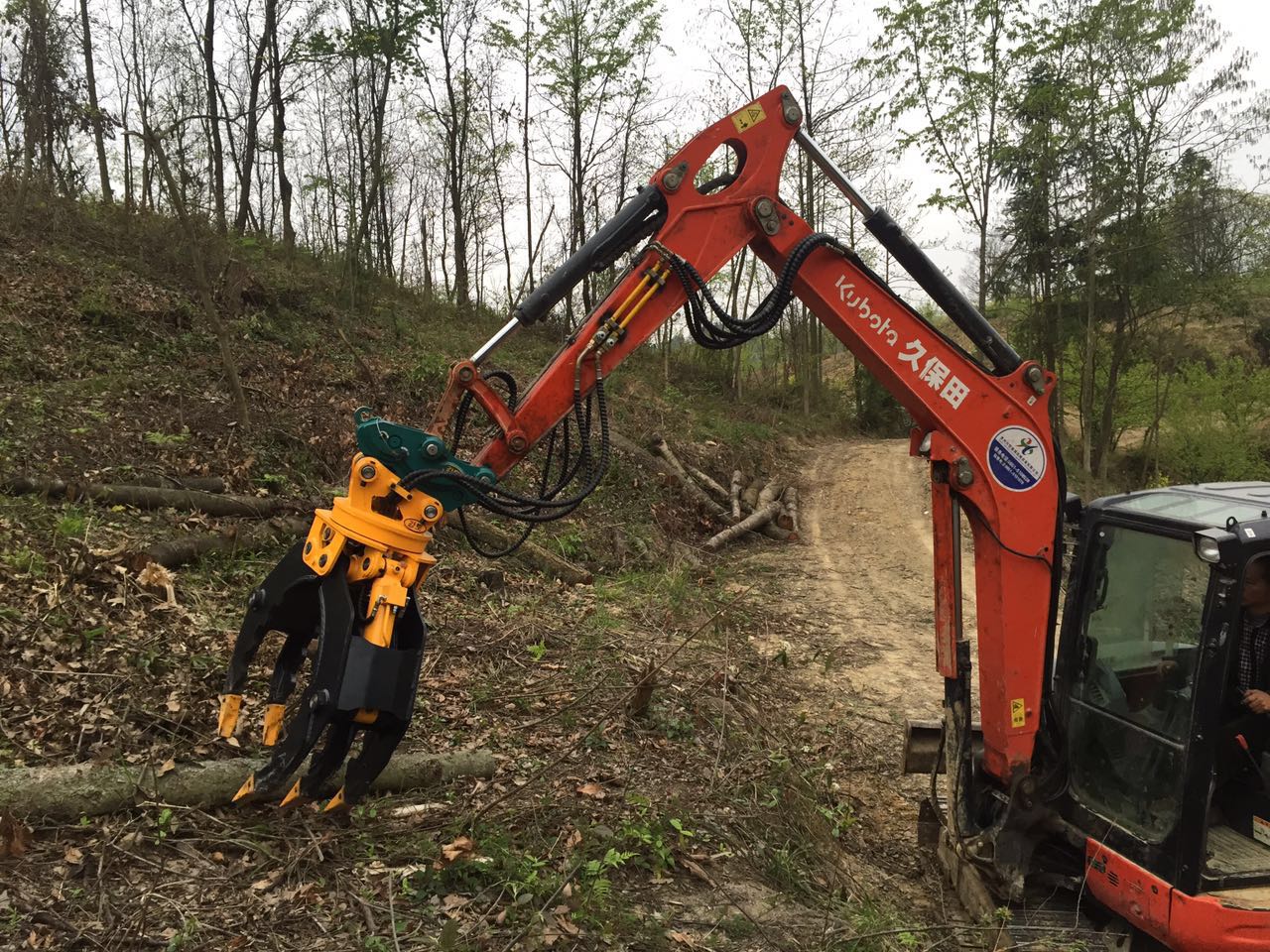

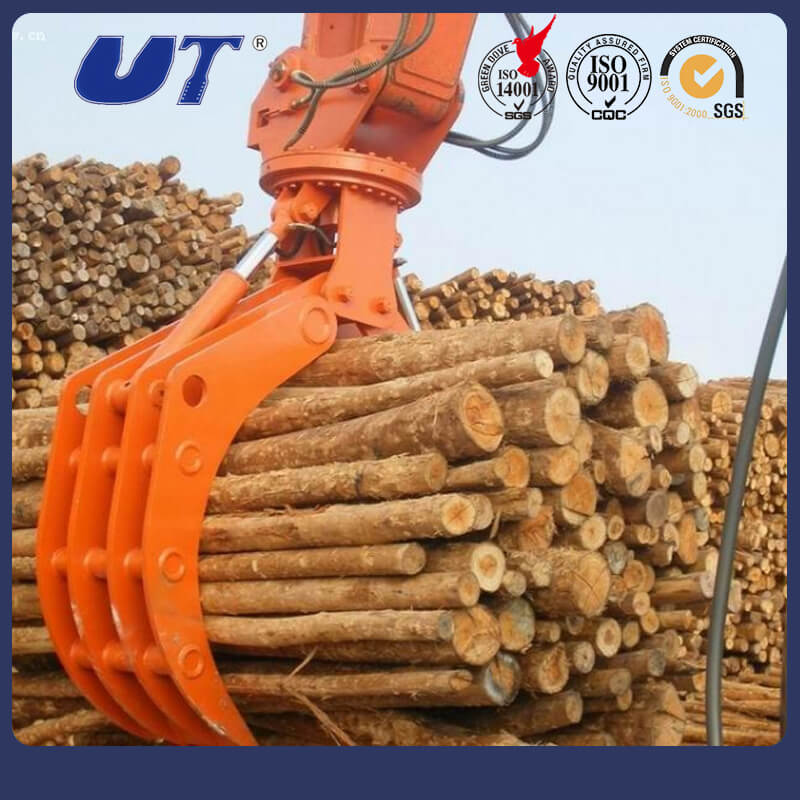

8.Used for recycling abandoned old metal. Also it can be used for loading and uploading and the delivery of stone, pipe, sugar crane and wood.

Models:

Item/Model	Unit	UTLG03	UTLG04	UTLG06	UTLG08	UTLG10	UTLG14	UTLG20
Weight	kg	320	390	740	1380	1700	1900	2100
Max.jaw opening	M/m	1300	1400	1800	2300	2500	2500	2700
Oil pressure	Kg/cm²	110-140	120-160	150-170	160-180	160-180	180-200	180-200
Set up pressure	Kg/cm²	170	180	190	200	210	250	250
Operating flux	L/min	30-55	50-100	90-110	100-140	130-170	200-250	250-320
Cylinder volume	ton	4.0x2	4.5x2	8.0x2	9.7x2	12x2	12x2	14x2
Suit Excavator	ton	4-6	7-11	12-16	17-23	24-30	31-40	41-50

The specifications may vary with different excavators and are subject to change without prior notice for products improvement.
