Single-cylinder Log Grapple
  • Single-cylinder Log Grapple
  • Single-cylinder Log Grapple
  • Single-cylinder Log Grapple
  • Single-cylinder Log Grapple

Single-cylinder Log Grapple

We're here to help:Easy ways to get the answers you need

Feature





Features

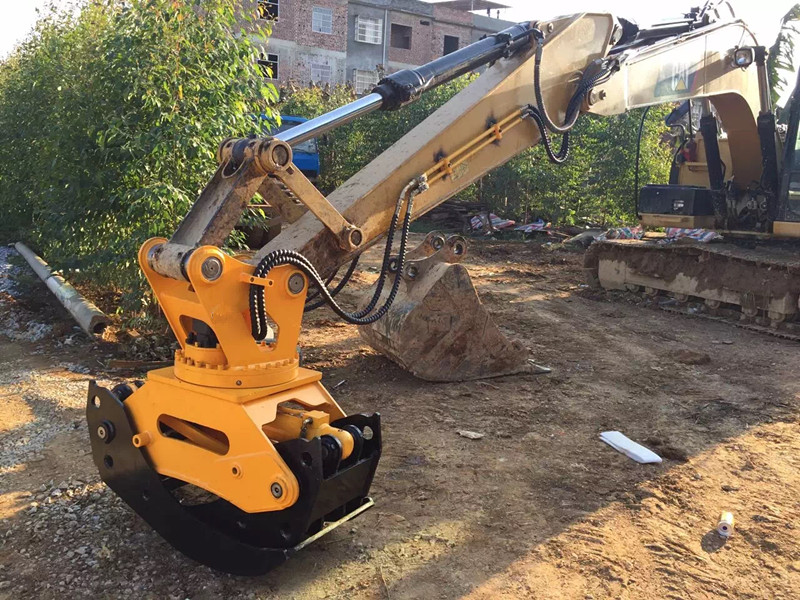

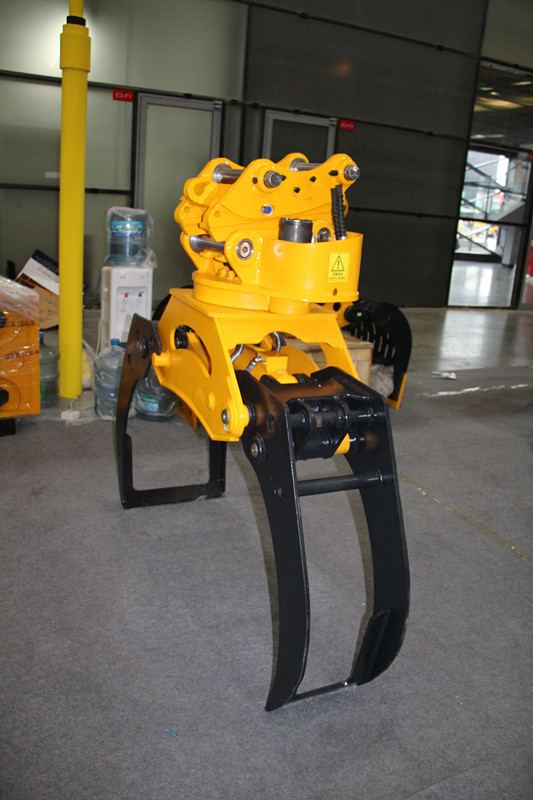

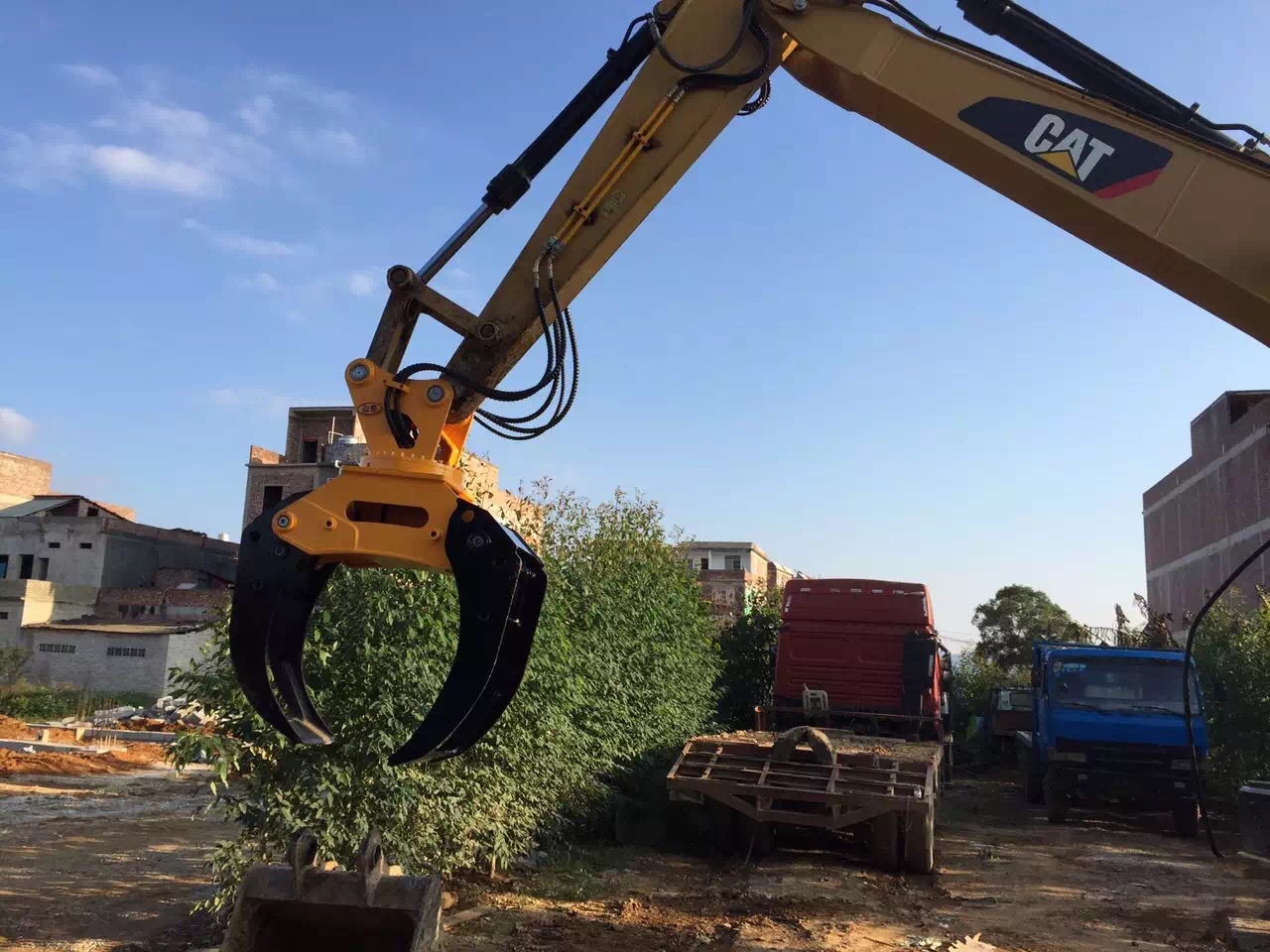

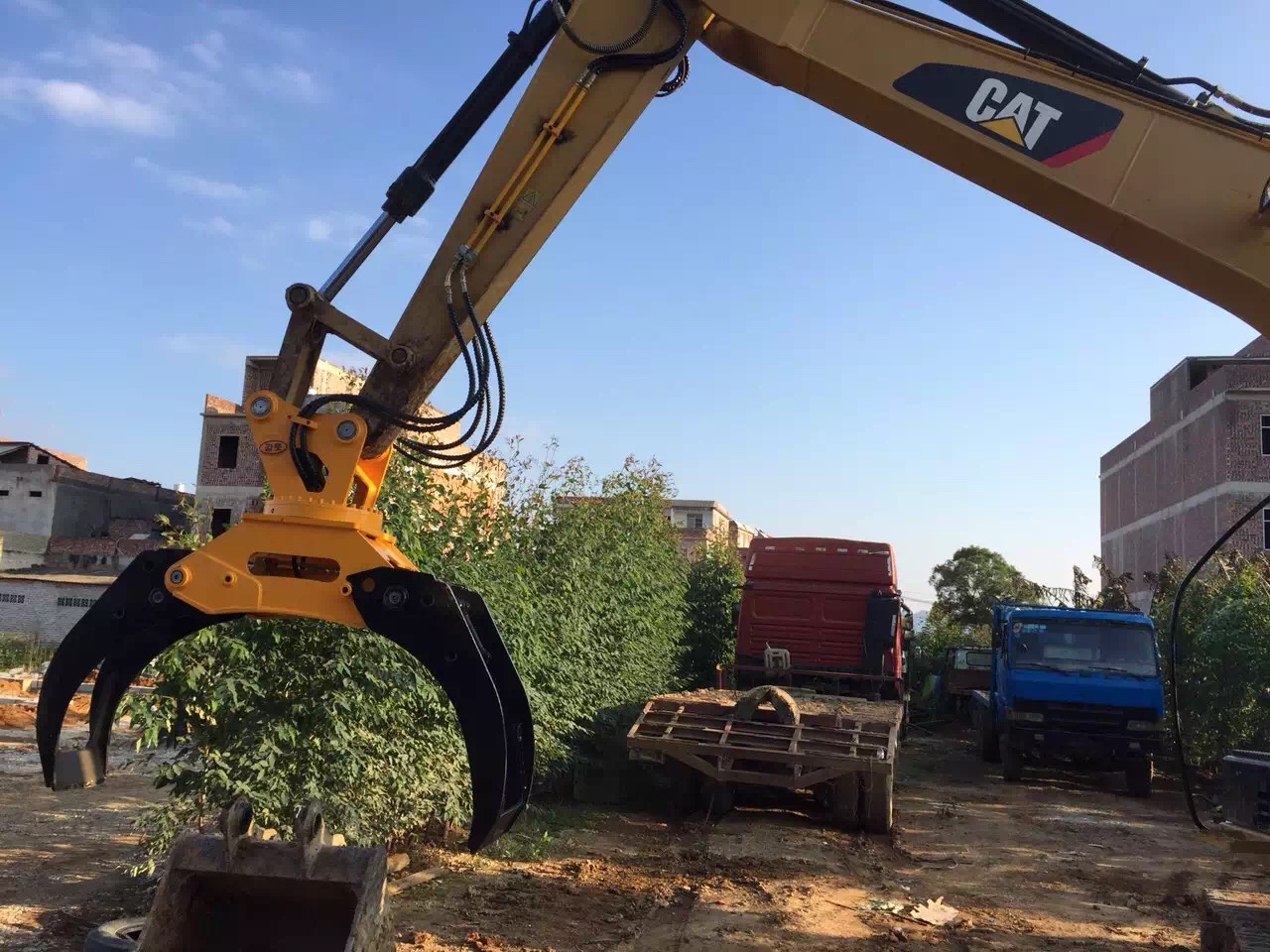

1. The single-cylinder grapple is a wood grabbing machine specially developed for shrubs. It has the characteristics of light weight, large amount of grasping, flexible operation and so on.

2.It can be used for crops such as straw, reed, fine wood, etc.

3.Throttle, pressure reducing valve, relief valve (all valves are USA SUN brandare in electrical and hydraulic control

4.Driven by M+S motor with brake valve, cylinder with USA safety valve (USA SUN brand)

5.Width can be changed as per customer's requirements.


Item/Model

Unit

UTLG03

UTLG04

UTLG06

UTLG08

UTLG10

Weight

kg

200

350

710

1250

1450

Max.jaw opening

M/m

1200

1400

1700

2200

2300

Oil pressure

Kg/cm²

110-140

120-160

150-170

160-180

160-180

Set up pressure

Kg/cm²

120

120

120

120

120

Operating flux

L/min

30-55

50-100

90-110

100-140

130-170

Cylinder volume

ton

4.0x1

8.0x1

8.0x1

9.7x1

12.0x1

Suit Excavator

ton

4-6

7-11

12-16

17-23

24-30


The specifications may vary with different excavators and are subject to change without prior notice for products improvement.



parameter

Product content to be updated ......
