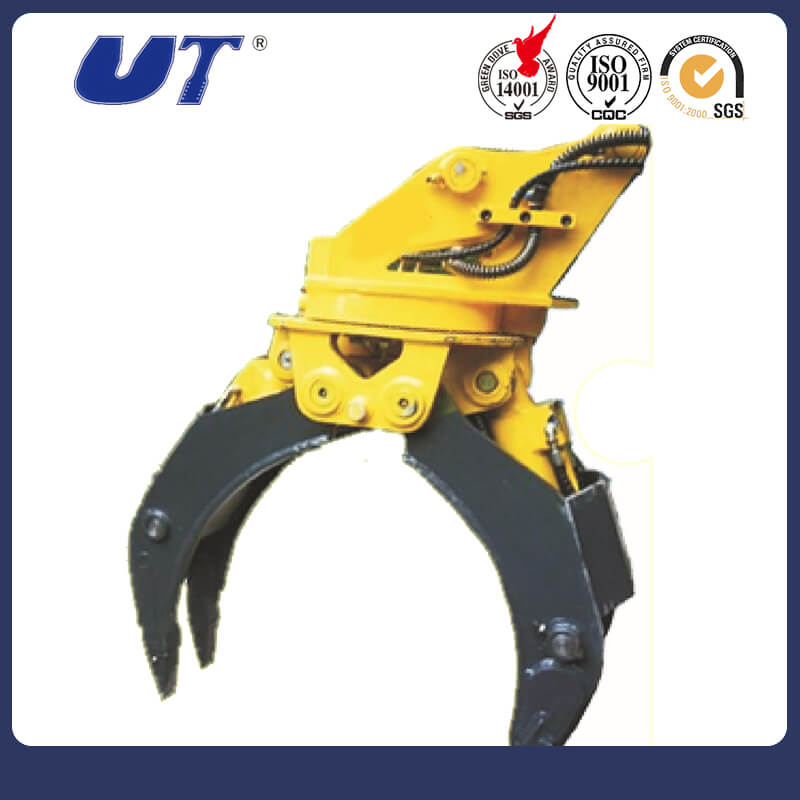

Fixed Pattern Rock Grapple

OEMYes
ODMYes
Warranty1 Year
ColorYellow, Orange, Black, Blue

We're here to help:Easy ways to get the answers you need

Chat Now Send Email

Feature

Fixed Rock Grapple

Features:

1.Special steel material with high ductility and high resistance

2.Imported balance valve motor with buffering and braking kinetic energy.
3.The cylinder is equipped with non-return valve, more safety for grabbing
4.High strength rotating support device, the operator can manipulates the swinging speed and its rotating direction for 360 degree clockwise and anticlockwise.
5.With the biggest open width of the same level product. Best performance with minimum weight. Special customized big cylinder. 6.Capable of grabbing heavier stuff.?Service life is prolonged and maintenance expense is reduced owning to the special made rotating gear.
7.Flexible design：the grabbing shape can be changed as customer request in order to meet the requirement for operation.

8.Used for recycling abandoned old metal. Also it can be used for loading and uploading and the delivery of stone, pipe, sugar crane and wood.

Models:

Item	UTLG-02	UTLG-04	UTLG-06	UTLG-08	UTLG-10	Unit
Weight	200	350	710	1250	1450	kg
Max Jaw Opening	1200	1400	1700	2200	2300	mm
Oil Pressure	110-140	120-160	150-170	160-180	160-180	bar
Set Up Pressure	120	120	120	120	120	bar
Operating Flux	30-55	50-100	90-110	100-140	130-170	Ipm
Cylinder Volume	4.0X1	8.0X1	8.0X1	9.7X1	12X1	litre
Suitable Excavator	4-6	7-11	12-16	17-23	34-30	Ton

parameter

Product content to be updated ......
