Hydraulic Rotating Steel/Rock Grapple

  • Warranty1 Years
  • ColorBlack, Orange, Yellow, Black
  • OEMYes
  • DOMYes

We're here to help:Easy ways to get the answers you need

Feature

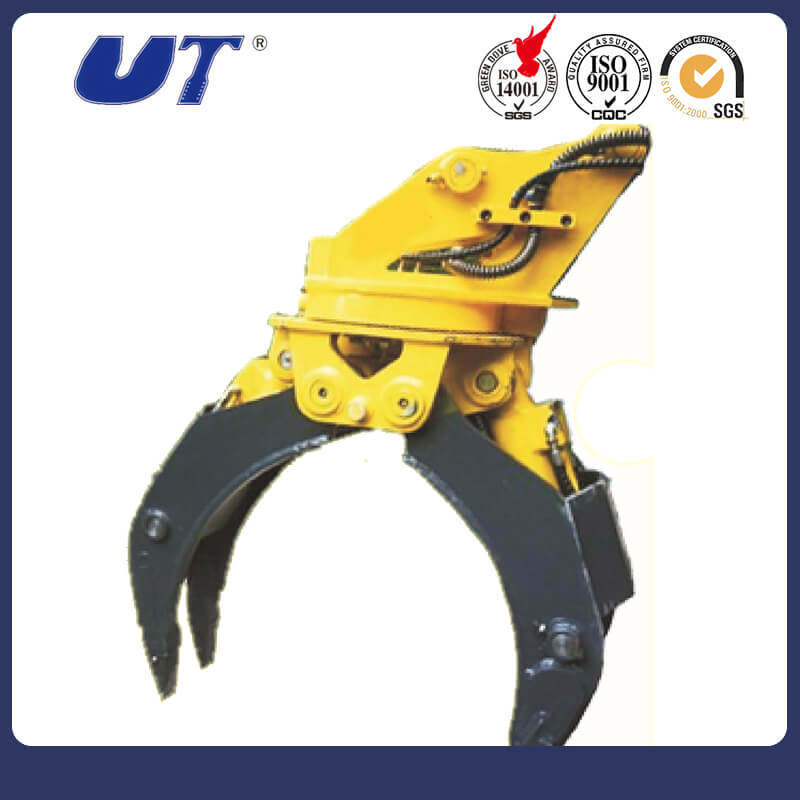

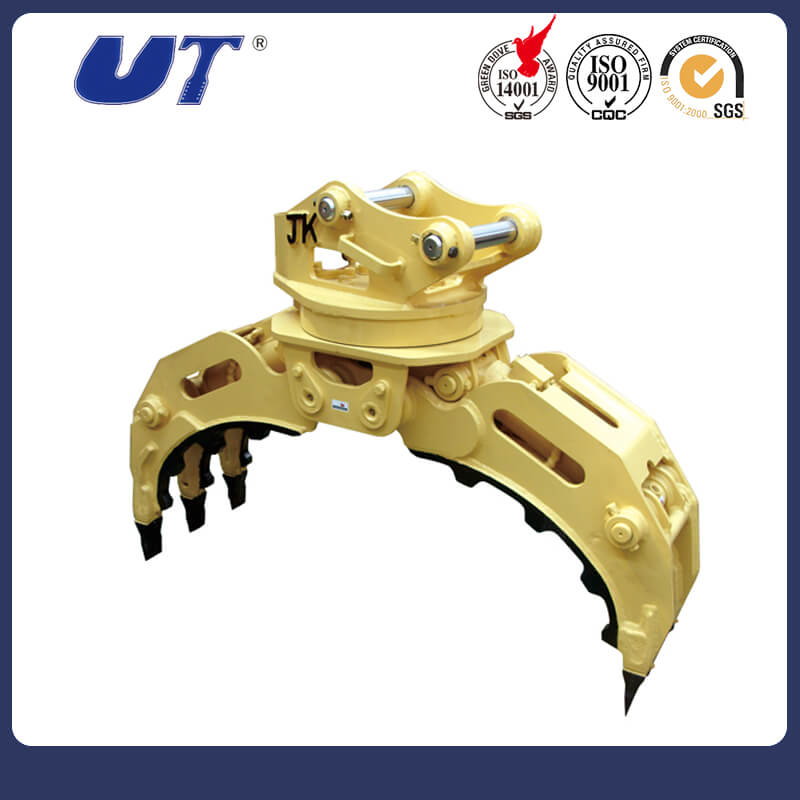

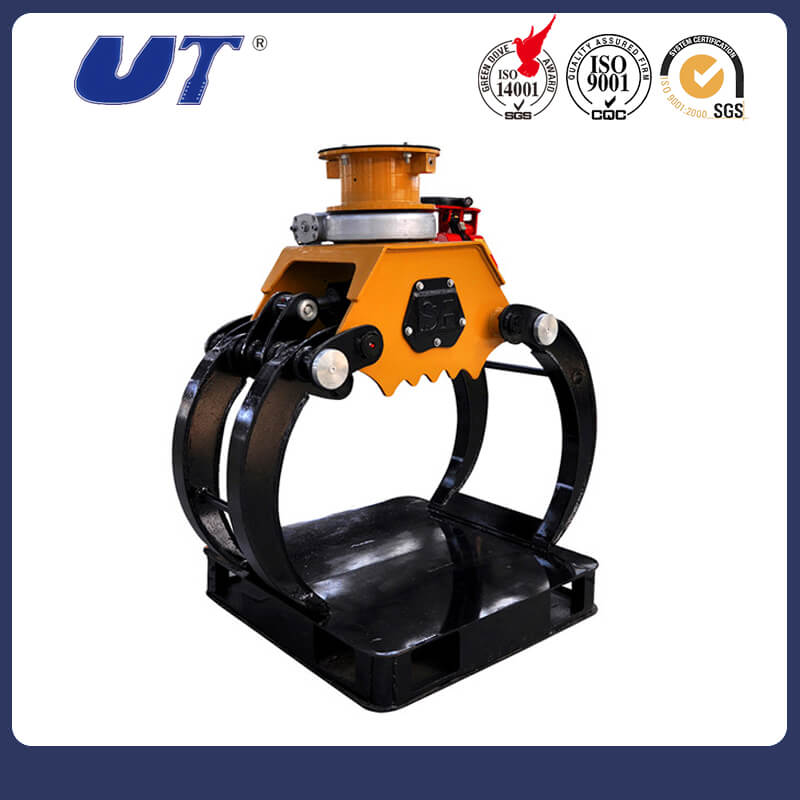

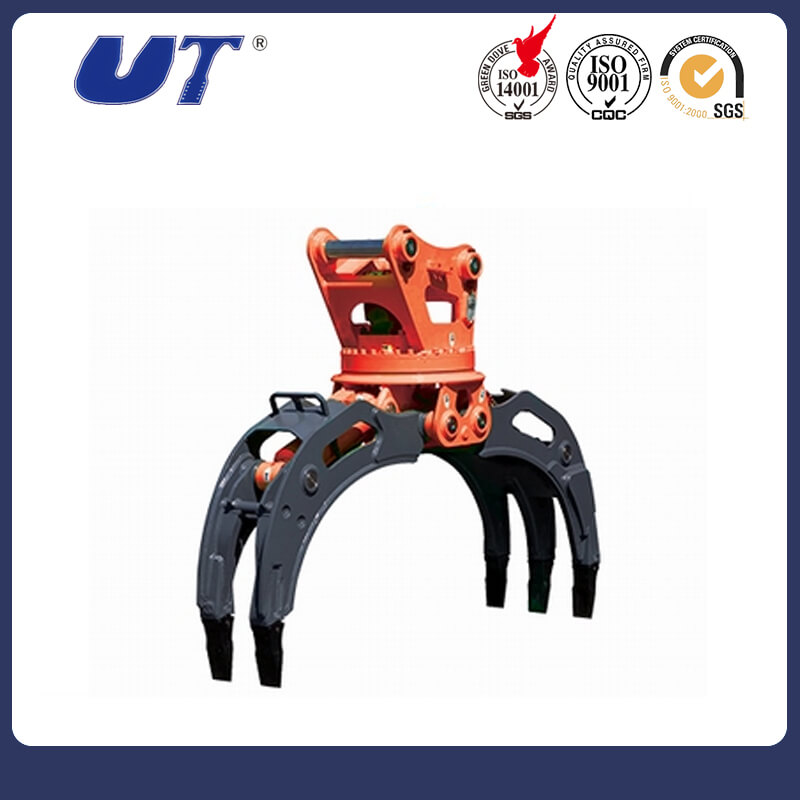

Hydraulic Rotating Steel/Rock Grapple


Features:

1.Special steel material with high ductility and high resistance

2.Imported balance valve motor with buffering and braking kinetic energy.
3.The cylinder is equipped with non-return valve, more safety for grabbing
4.High strength rotating support device, the operator can manipulates the swinging speed and its rotating direction for 360 degree clockwise and anticlockwise.
5.With the biggest open width of the same level product. Best performance with minimum weight. Special customized big cylinder. 6.Capable of grabbing heavier stuff.?Service life is prolonged and maintenance expense is reduced owning to the special made rotating gear.
7.Flexible design:the grabbing shape can be changed as customer request in order to meet the requirement for operation.

8.Used for recycling abandoned old metal. Also it can be used for loading and uploading and the delivery of stone, pipe, sugar crane and wood.

Models:



Item/Model 项目/型号

Unit

UTSG03

UTSG04

UTSG06

UTSG08

UTSG10

UTSG14

UTSG20

Weight 重量

kg

320

390

740

1380

1700

1900

2100

Max.jaw opening开口尺寸

M/m

1300

1400

1800

2300

2500

2500

2700

Oil pressure 工作压力

Kg/cm²

110-140

120-160

150-170

160-180

160-180

180-200

180-200

Set up pressure 设定压力

Kg/cm²

170

180

190

200

210

250

250

Operating flux 工作流量

L/min

30-55

50-100

90-110

100-140

130-170

200-250

250-320

Cylinder volume 油缸容量

ton

4.0x2

4.5x2

8.0x2

9.7x2

12x2

12x2

14x2

Suit Excavator适配挖机

ton

4-6

7-11

12-16

17-23

24-30

31-40

41-50


The specifications may vary with different excavators and are subject to change without prior notice for products improvement.
